Einleitung
After opening the device and unplugging the heating element, thermostat, interface, and power the control module can be removed.
Werkzeuge
-
-
Begin by removing the condensation catcher to expose the screw. Pinch the condensation catcher from both sides and pull.
-
-
-
Remove the screw that was behind the condensation catcher using a Phillips head screwdriver, size PH2.
-
-
-
Remove the piece that was held by the screw by pulling out from the top, then pulling up. This will expose the hinges for the lid.
-
-
-
To remove the hinges, rotate the bottom of the rod upwards, then push inwards to pull them out. Repeat the process for both sides. This will allow the lid to be removed.
-
-
-

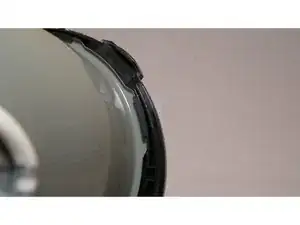

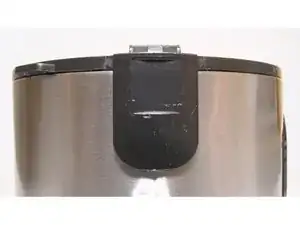

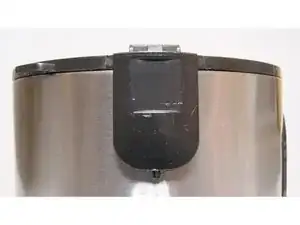

Locate the piece on the black plastic trim that is opposite from where the hinges were. Carefully, pry this piece from the bottom to get the tab from behind the stainless steel to in front of the steel as shown.
-
-
-

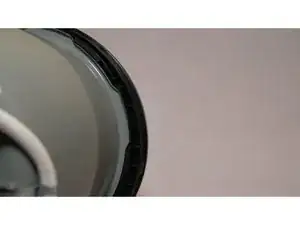

Next, you must remove the upper black trim which is connected to the inside liner with tabs. To do this you must hold the interior walls still, while rotating the trim so that the tabs line up with the slots. (tabs cannot be seen at this point, pics are to give you an idea of what you cannot see inside the device)
-
-
-

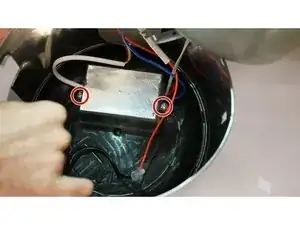

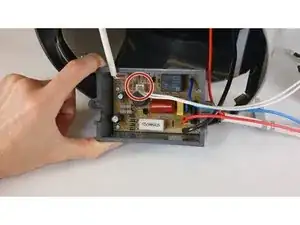

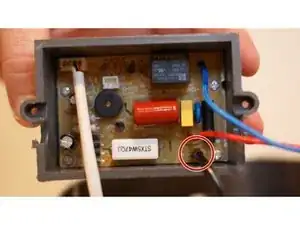

Using a Phillips head screwdriver, size PH2, remove the screws from the control module to expose wired connections.
-
-
-

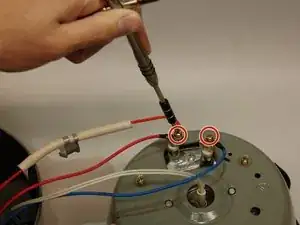

Remove red and blue wires from heating element to fully detach from control module. This is done by removing the screws on the heating element terminals using a Phillips head screwdriver, size PH2.
-
-
-

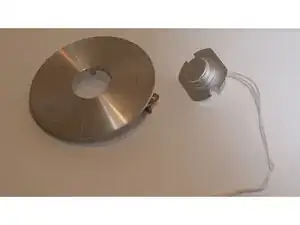

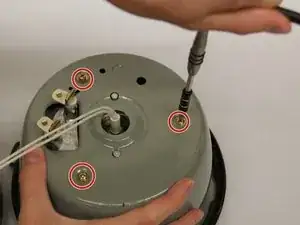

Again, using a Phillips head screwdriver, size PH2, remove the three screws holding the heating element assembly to the bowl. This will remove the heating element and the thermostat.
-
To reassemble your device, follow these instructions in reverse order.
8 Kommentare
I found the problem inside the unit, a blown thermal fuse on the neutral side of the power. The inside of this unit is nothing like the pictures, but the part up to removing the black rim was accurate. This unit is an SB and apparently a lesser model of the above.
Thanks for this, very helpful. I only needed to remove the loud, horrible beeper (mission accomplished, woohoo!) although the really hard part for some reason was rotating the tabbed black ring independently of the inside liner. Coudn't get it to budge AT ALL, as if they were glued together. I could only rotate them as a unit inside the housing. After way too long working at this, I ended up wedging a flathead into the crevice between the ring and liner, from the inside, at the two points where I could see the tabs through the hole on the outside, then just twisted the screwdriver and snapped off the tabs one at a time. There are two more tabs on the other side of the ring, but these just slide out once the first two are gone, and the liner can be easily removed. When reassembling, the black trim fits quite snugly back onto the liner, so the unit feels as solid as it did before the operation. Thanks again!
Dav e -
Dave,
I also plan to remove beeper, did you just cut it out or un-solder it? any issues?
thanks
jdelabar@gmail.com
I’m not Dave, but I used a vacuum desoldering tool to remove the beeper, which was easy. I think there would have been enough room to cut it out also. The only hard part was getting the black ring off and then back on.
I want one trolley module for ARC 3000SB. Where can I get. How much I have to. Pay for it approximately.
Email id pantulu.chinta@gmail.com
