Einleitung

These steps are very similar to steps for LED replacement. The only difference between these two guides are the solder points. Pay close attention to the pictures to make sure that you will be removing the solder from the correct points.

  1. wqhT5jLhyODmTQ4g
    wqhT5jLhyODmTQ4g
    TyiVxMUAnHLqGEQS

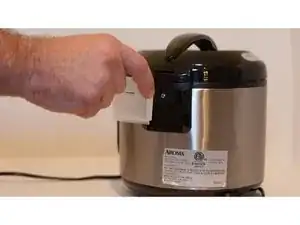

    • Begin by removing the condensation catcher to expose the screw. Pinch the condensation catcher from both sides and pull.

  2. UEkHdOhvi3XAhKFB

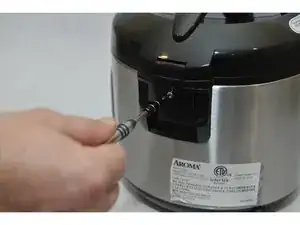

    • Remove the screw that was behind the condensation catcher using a Phillips head screwdriver, size PH2.

  3. 35WVoiGnupRHodVJ
    35WVoiGnupRHodVJ
    TIZb6h31qt3AmyBZ

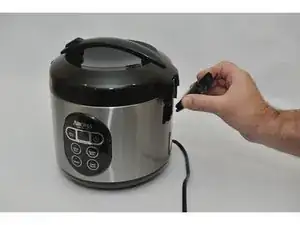

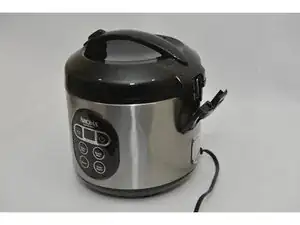

    • Remove the piece that was held by the screw by pulling out from the top, then pulling up. This will expose the hinges for the lid.

  4. Br3TFcyVKWJwPtbu
    Br3TFcyVKWJwPtbu
    caPIqRmtZLb6UHC3
    YIlx2MniwNoIM6hK

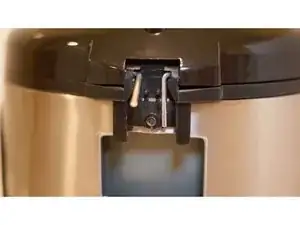

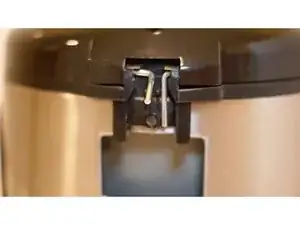

    • To remove the hinges, rotate the bottom of the rod upwards, then push inwards to pull them out. Repeat the process for both sides. This will allow the lid to be removed.

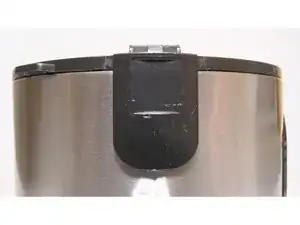

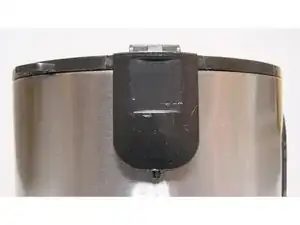

  5. TdKHCS5sGlxtAZs6
    TdKHCS5sGlxtAZs6
    PLrZhKHV6YIBQQcW
    • Locate the piece on the black plastic trim that is opposite from where the hinges were. Carefully, pry the bottom edge of this piece outward (away from the stainless steel side) about 1/4 inch to pull the tab out of it's hole. Once the bottom is pried out a bit, the tab can be seen from the bottom. Press up on the tab with a screwdriver.

  6. PpTdRC64P3Vr4Kkt
    PpTdRC64P3Vr4Kkt
    iWNmldjCemoBXBDQ

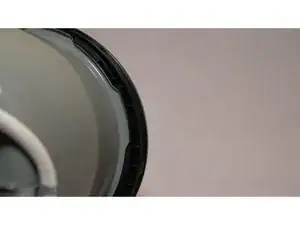

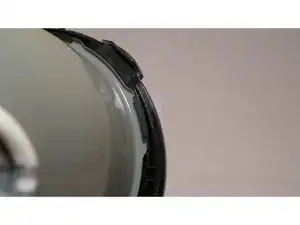

    • Next, you must remove the upper black trim which is connected to the inside liner with tabs. To do this you must hold the interior walls still, while rotating the trim so that the tabs line up with the slots. (tabs cannot be seen at this point, pics are to give you an idea of what you cannot see inside the device)

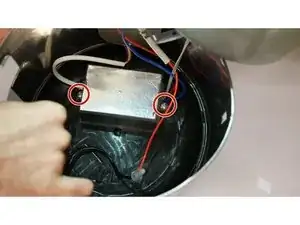

  7. OvScIZo3rwnTLsWm
    OvScIZo3rwnTLsWm
    HnVBSpsXcbSQGOKm

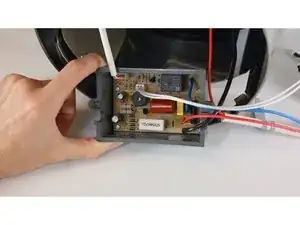

    • Using a Phillips head screwdriver, size PH2, remove screws from the control module to expose wired connections.

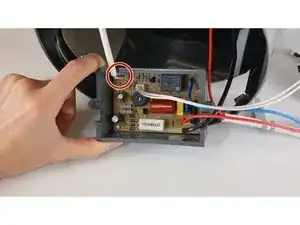

  8. ttuhilRoSAhSHxDr
    • Unplug the interface from control module.

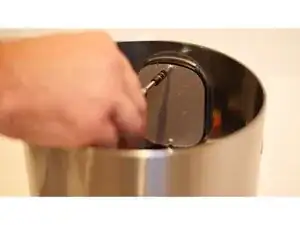

  9. ff1RnjR4WSwMqUKZ
    ff1RnjR4WSwMqUKZ
    3SdpBp6QrRBOqJ16

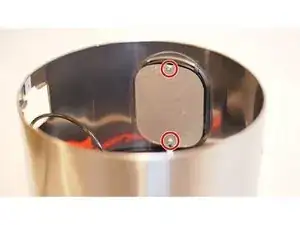

    • Remove the two screws holding the cardboard cover over the Interface using a Phillips head screwdriver, size PH2.

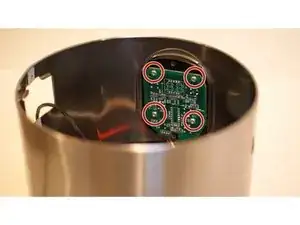

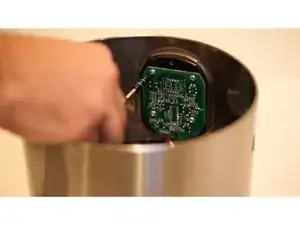

  10. bwsKfAYEqGOZeBau
    bwsKfAYEqGOZeBau
    CRycaUSF3tPTtS4P
    • Using a Phillips head screwdriver, size PH2, remove the four screws holding the interface in place.

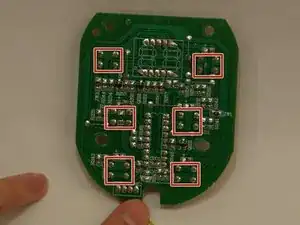

  11. n4Wlp2oqw6TheEZG
    n4Wlp2oqw6TheEZG
    NKYLdCvovX2c6mCV
    • These pictures identify the Push Buttons along with their corresponding solder points through the back of the circuit board.

  12. DLpHVTA36AN5Ow2G
    • Heat each point with the soldering iron while pulling the Push Button out from the front in order to remove the buttons.

Abschluss

To reassemble your device, follow these instructions in reverse order.
