Astro A20 Frame Replacement

Schwierigkeitsgrad

Very easy

Schritte

4

Zeitaufwand

2 - 5 Minuten

Einleitung

A damaged frame on an Astro A20 can be replaced easily with a 60 mm extension, Phillips #1 screwdriver, and a new frame.

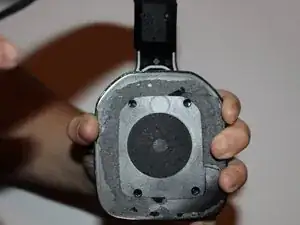

  1. XEjYLX244gPewRYq

    • Place your hand on the back of the speaker.

  2. RWDt3HfvZvuQaSfB
    RWDt3HfvZvuQaSfB

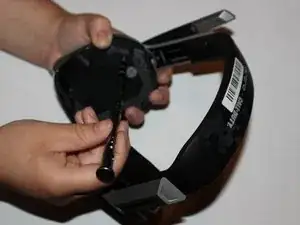

    OeIYwXLGfgPhyOed

    • Remove the four 7mm screws with a Phillips #1 screwdriver.

    • You may want to use a 60mm screwdriver extension to reach the screws inside of the headset.

  3. xvrHRwXRfkKmJRDH

    • Lift the speaker.

    • Disconnect the white connector from the device.

    • Remove the wires connecting the frame shown by the yellow square.

    • Pull the black cord through the hole shown by the blue arrow.

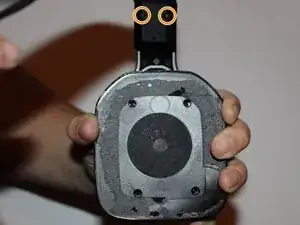

  4. QrNyXOsLi2YCHEZU

    • Find the top 7mm J1 JIS head screws.

    • Remove the two 7mm J1 JIS head screws with a J1 screwdriver bit connected to a 60mm extension.

    • Pull the black cord through the frame.

Abschluss

To reassemble your device, follow these instructions in reverse order.
