Astro A20 Microphone Replacement

Geschrieben von: Jasmine Yarbrough
  • Kommentare: 5
Astro A20 Microphone Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

10 - 15 Minuten

Einleitung

The Astro A20 microphone replacement guide shows the steps of replacing a microphone with the use of a 60 mm extension, Phillips #1 screwdriver, and a new microphone.

  1. R3DMTXYSKIihcf3l

    • Place one hand on the hard side of the headset ear portion and on the cushion.

    • Lift the small portion on the edge of the cushion.

  2. f2evNQFZpJlwqNqP

    • Slide the metal spudger underneath the lift part of the ear cushion.

    • Pull the ear cushion while wedging the spudge around the edge of the ear cushion.

    All of this is accurate, except the battery & motherboard Are on the charging port side, opposite mic side unlike picture. The right earphone is correct side.

    rebjr2880 -

  3. PsP4oUUBERThuDMq
    PsP4oUUBERThuDMq
    ZoAGsMyWrVegrMVw

    • Remove the ear cushion from the headset.

  4. CVYmouxnDp3NZXHB

    • Place one hand on the back of the speaker.

  5. N1mxvkKnbgOGOdNU
    N1mxvkKnbgOGOdNU
    o3scqXikJaGkdTic

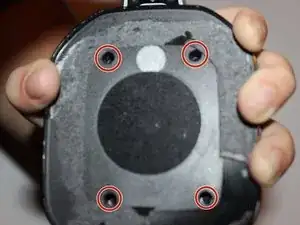

    • Remove the four 7mm screws with a Phillips #1 screwdriver.

    • You may want to use a 60mm screwdriver extension to reach the screws inside of the headset.

  6. RHKeqYTtufYSx5UZ
    RHKeqYTtufYSx5UZ
    KHHfmCCViGCYYrMM

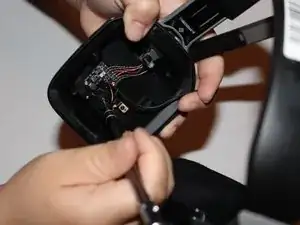

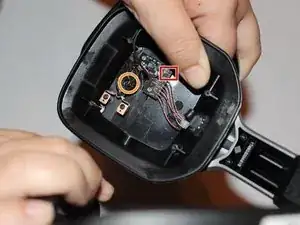

    • Lift the speaker area.

    • Disconnect the wires that connect the microphone.

    • Remove the 7mm screw with a Phillips #1 screwdriver.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Jasmine Yarbrough

Mitglied seit: 10/09/18

873 Reputation

4 Kommentare

worked for me….thanks

Thompson Crusher -

listen my mic peace is messed up is there like a fix for that

Bruh Bruh -

were? are you getting the new mic from? please link the site

jrod6t9 -

this really worked! There was no need to get a replacement mic since it was just a torn cable not making good contact. Thanks a lot!

Lineth Jauregui -
