Astro A20 Speaker Replacement

Geschrieben von: Jasmine Yarbrough
  • Kommentare: 1
Astro A20 Speaker Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

10 - 15 Minuten

Einleitung

If the Astro A20 does not have any audio transmitting from the speaker then you will need to follow these steps to replace the speaker.

  1. R3DMTXYSKIihcf3l

    • Place one hand on the hard side of the headset ear portion and on the cushion.

    • Lift the small portion on the edge of the cushion.

  2. f2evNQFZpJlwqNqP

    • Slide the metal spudger underneath the lift part of the ear cushion.

    • Pull the ear cushion while wedging the spudge around the edge of the ear cushion.

    All of this is accurate, except the battery & motherboard Are on the charging port side, opposite mic side unlike picture. The right earphone is correct side.

    rebjr2880 -

  3. PsP4oUUBERThuDMq
    PsP4oUUBERThuDMq
    ZoAGsMyWrVegrMVw

    • Remove the ear cushion from the headset.

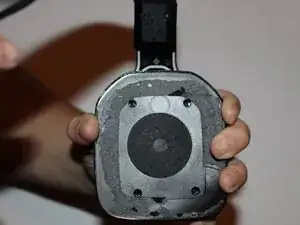

  4. TiBcoAAEyP3OGRmd

    • Place your hand on the opposite side of the speaker.

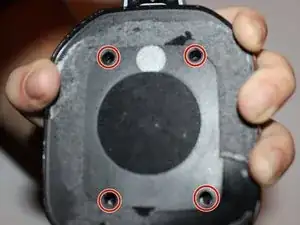

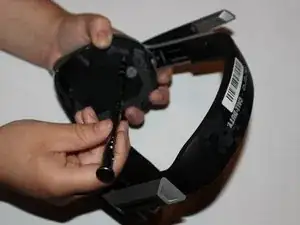

  5. A2mm4VEhhrJGq1ac
    A2mm4VEhhrJGq1ac
    W5i3FSTv22xDVglQ

    • Remove the four 7mm screws with a Phillips #1 screwdriver.

    • You may want to use a 60mm screwdriver extension to reach the screws inside of the headset.

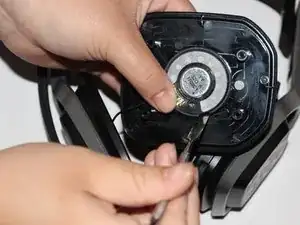

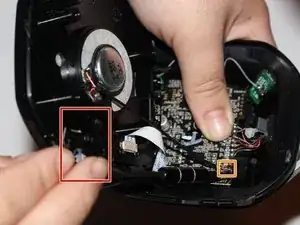

  6. wIYjpDDNFXneegVx
    wIYjpDDNFXneegVx
    QPoSKWJTBKl1jYcY

    • Lift the speaker area.

    • Disconnect the wires connected to the speaker.

    • Wedge a spudger on the edge of the speaker and lift upwards to remove the speaker from the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
