Astro A40 Gen2 Speaker Replacement

Geschrieben von: Donavan Feliz
  • Kommentare: 2
Astro A40 Gen2 Speaker Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

5 - 10 Minuten

Einleitung

In this step we will be removing all parts necessary to reach the speaker inside each headset. Remember that you can repeat these same steps for each side of the headset if either side needs replacement.

  1. iuGQuImT25vMMMHY
    iuGQuImT25vMMMHY
    J4gfCeGQU2e14gsh

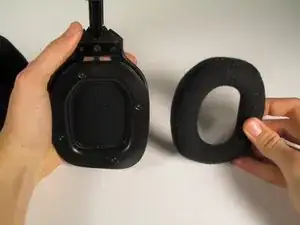

    • Pull one corner of the pad to release it from the headset.

    • Pull the rest of the ear pad off.

    This is removal only.

    Note, I had to glue mine back on… Don’t follow this guide! :(

    Toby Cook -

  2. SWgFhOyneL5lBqOY
    SWgFhOyneL5lBqOY
    XRD1RDdcoNnOt5r3

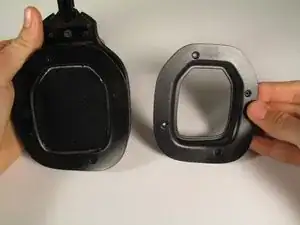

    • Locate the four 4.5 mm Philips #0 screws on the panel shown.

    • Remove them using a Phillips #0 head screwdriver.

    • Remove the panel.

  3. iUusgZPcv1Nug4lc
    iUusgZPcv1Nug4lc
    RkwLigNTNTnri2Hy

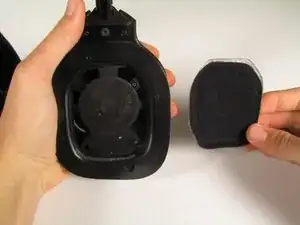

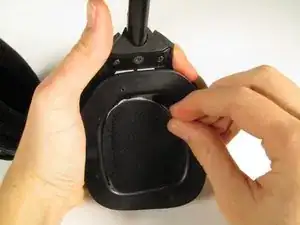

    • Using either your fingers or a plastic opening tool, pry off the speaker cover.

  4. BPBKWLgyXkTVioCK

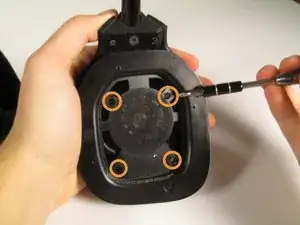

    • Locate the four 4.5 mm Philips #0 screws as shown on the speaker housing.

    • Remove the four screws using a Phillips #0 head screwdriver.

  5. j5FGYh1rA2DTVPuJ

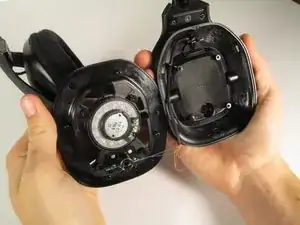

    • Remove the housing to reveal the speaker.

    • Make sure not to break the small wire holding the two portions together.

Abschluss

To reassemble your device, follow these instructions in reverse order.
