Astro A50 (2019) Battery Replacement

Geschrieben von: Bryan Ambrocio-Gonzalez
  • Kommentare: 1
Astro A50 (2019) Battery Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

30 Minuten - 1 Stunde

Einleitung

Hello, today we will begin you repair of The Astro A50 Headset (2019). The most likely reason for you needing to repair this headset is either rage-quitting a game or simply your battery died & needs replacing. We did some searching on the web and couldn’t find any generous guides on how to repair. Just have to play harder so you don’t have worry about other kinds of repair on this headset. Thier aren’t many manufactured defects in the product meaning the battery should be your only fix needed. So today we will help you change your battery of an Astro A50 (2019). Hopefully, this guide helps you now & in the future.

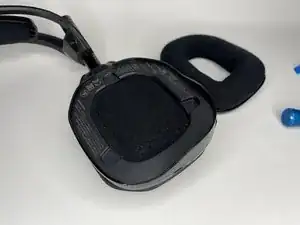

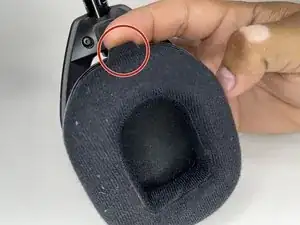

  1. xfaNxeETQbsZEvJm
    xfaNxeETQbsZEvJm
    i1exGPUgpPQpmSOc

    • Remove the right side ear cushion by pulling toward you on the top tab.

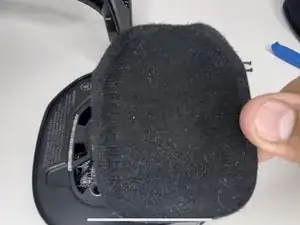

  2. OsKjCYLuiMMi545T
    OsKjCYLuiMMi545T
    uLZiwUTNCwIGCFBd
    3gHNHFZe3NFZVjJr

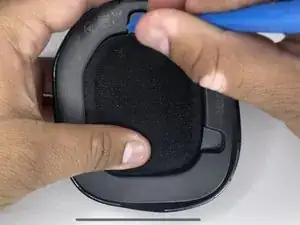

    • Remove the speaker filter by using a prying tool and peeling it off.

    • Work your way around the filter until it comes off.

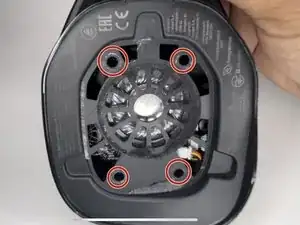

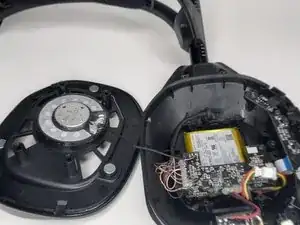

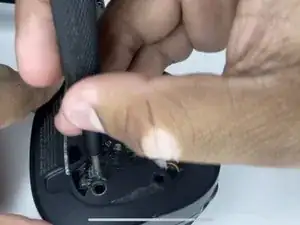

  3. NEbTQML5LDTryj5n
    NEbTQML5LDTryj5n
    I4CO6xSWpWdeDKfA
    xXZNuEXFm45LPOIb

    • Remove all four 1.5 mm screws using the Phillips #00 screwdriver.

    • Be careful not to lift the speaker too quickly or too forcefully to prevent the wires from being pulled out of their connections.

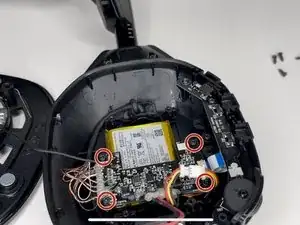

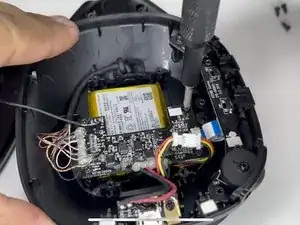

  4. 35SjVvWMRoZfnCUf
    35SjVvWMRoZfnCUf
    sNP2gb1JNfVagCbJ
    mY3PyJdkWMlmaHiG

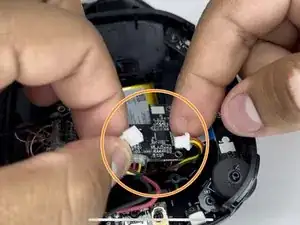

    • Remove all four 1.5 mm screws holding the motherboard using the Phillips #00 screwdriver.

    • Unplug the battery by pulling the plug.

  5. JcVELSeuyKmemXSP
    JcVELSeuyKmemXSP
    FN3J3sKXJIDKXRsv

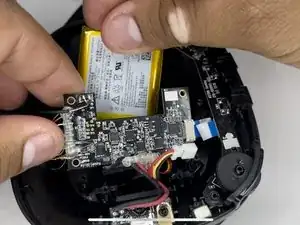

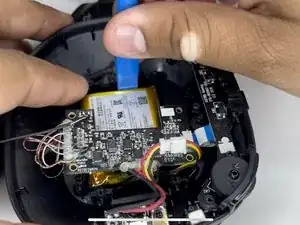

    • Remove the old battery with a plastic opening tool.

    • Be careful to not puncture the battery or fold it.

Abschluss

To reassemble your device, follow these instructions in reverse order.

For optimal performance, after completing this guide, calibrate your newly installed battery.

Take your e-waste to an R2 or e-Stewards certified recycler.
