The motherboard is the large circuit board in the base station that controls the charging and sending of audio to the headset. This guide will show you how to disassemble and remove the motherboard form the base station.
-
-

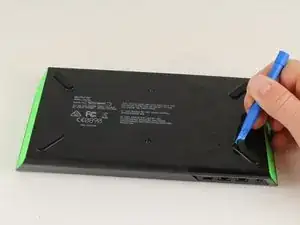

Remove the four rubber feet from the bottom of the base station using the plastic opening tool.
-
-
-

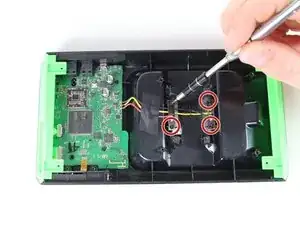

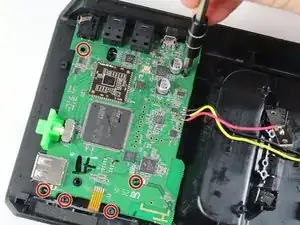

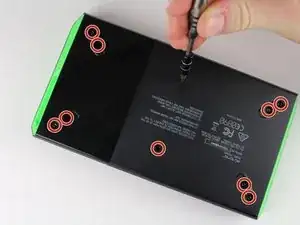

Remove the four 6 mm screws using a T6 screwdriver.
-

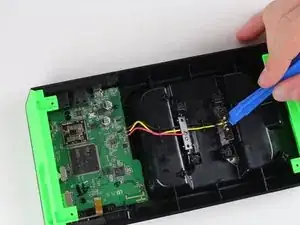

Remove each metal plate by lodging the plastic opening tool underneath it and using your hands to lift the plate away from the device.
-
-
-

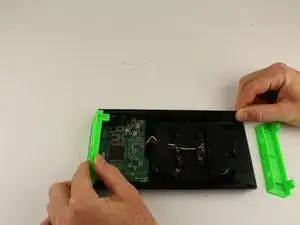

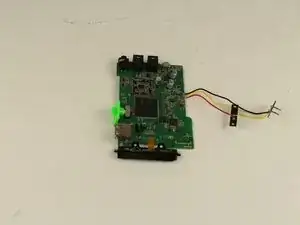

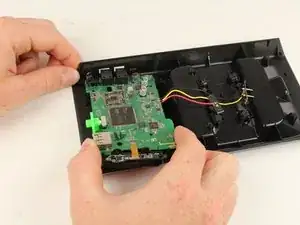

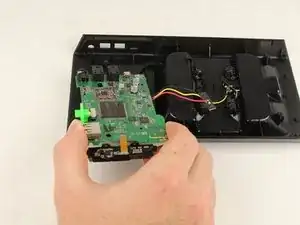

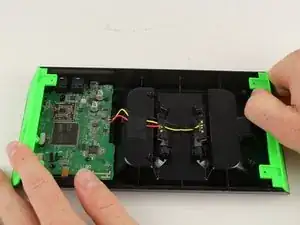

Lift up the motherboard from the base station and pull it away from the device to remove it.
-
To reassemble your device, follow these instructions in reverse order.
5 Kommentare
my base station dont turen on, the front leds. any solution?
my base station dont turns on the front leds, any solution?
having the same problem {with the front LEDs not turning on or it not being recognized by pc}what does the white button on the base station motherboard do?
