Astro A50 2016 Headset Buttons Replacement

Geschrieben von: Vincent Seguin
  • Kommentare: 3
Astro A50 2016 Headset Buttons Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

6 Minuten

Einleitung

Buttons can get sticky or become unresponsive. This guide will show you how to remove them for cleaning or replacing them.

  1. RbNuXeDABlsAdISL
    RbNuXeDABlsAdISL
    IyU4QwqntHQGD4I1

    • Remove the magnetic ear pads by gently pulling up away from the head set.

  2. Z5OKJlSUPGrKWcQk

    • Squeeze the plastic opening tool between the black plastic and foam pad on non mic side and then pry upwards to remove the felt pads covering the speaker.

  3. 2oXyLOMMI1TMZpaR

    • Remove the four 6mm Phillips 1 screws.

  4. ymOPamwCSfOoibgU

    • Lift the speaker module up off the device.

  5. f4xAF5pXQLg2wWZj

    • Remove the three 6mm PH1 screws.

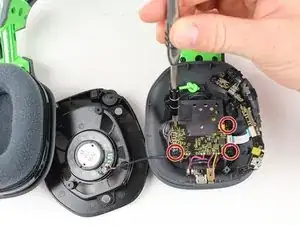

  6. PD2EkKEVVanqBwqU

    • Remove the four 6 mm PH1 screws.

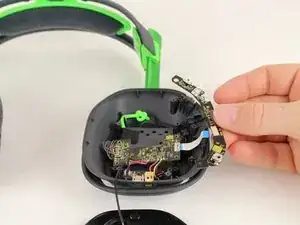

  7. X2JQotxfXMrpHVV2

    • Dettach the thin circuit board from the ribbon with your hand by pulling the board and wire in different directions.

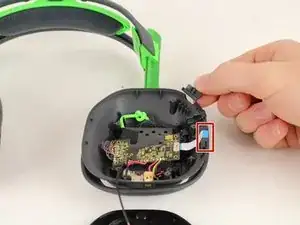

  8. XxiRuCZfX1wh2Ucx

    • Pull the two unscrewed buttons away from the ear cuffs with your hand.

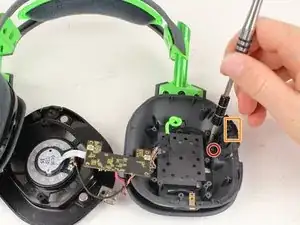

  9. 4lGkveMRCPuO1yCk

    • Remove the two 6mm PH1 screws.

    • Pull the unscrewed button away from the ear cuffs with your hand.

    This button on step 9 has become unresponsive. Any ideas?

    john Streff -

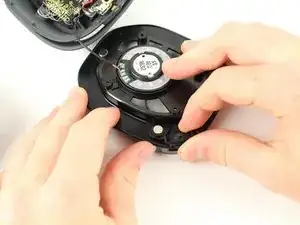

  10. exCtyUCUDdWLndZG
    exCtyUCUDdWLndZG
    bgDsgIwfFyauQTMl

    • Use your hands to pull the volume wheel up and away from the device.

    What if the dolby surround sound button does not toggle on or off

    john Streff -

Abschluss

To reassemble your device, follow these instructions in reverse order.
