The guide allows for you to take apart and replace the channel selection switch on an Astro A50 gaming headset with only a Phillips head screwdriver.
Werkzeuge
-
-

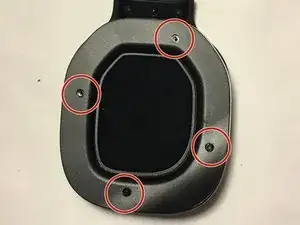

Remove the four 3.5mm Phillips head screws.
-

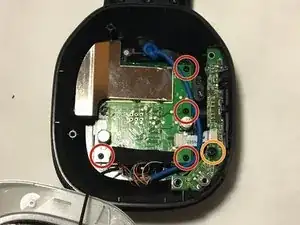

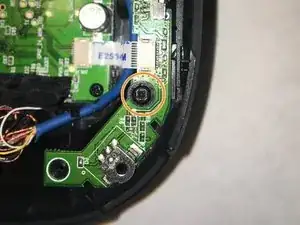

Remove the 3.5mm Phillips head screw circled in blue to remove secondary motherboard.
-
-
-

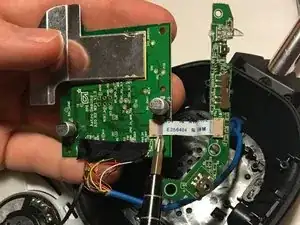

Separate the secondary mother board from the motherboard by pulling firmly to the right on the white connector.
-
-
-

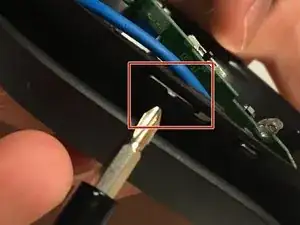

Finally push the channel selector in towards the motherboard to remove it from the headset casing. The switch is pointed to by the screwdriver inside the red square.
-
To reassemble your device, follow these instructions in reverse order.
3 Kommentare
This is great, thank you. My switch has been broken for two years, now I can get to fixing it.
Question: Once we have taken it apart, do we simply replace the switch or is there a contact on the switch itself, PCB or wire that needs to be re-attached or adjusted?
Thanks!
-Brandon
where did you get the part to replace it? Can’t find just the little switch anywhere.
This is perfect. But where do you get a new switch? Can’t find just the tiny part anywhere.
