Astro A50 Headband Replacement

Geschrieben von: Nicholas Eriksen
  • Kommentare: 6
Astro A50 Headband Replacement

Schwierigkeitsgrad

Easy

Schritte

2

Zeitaufwand

15 Minuten

Einleitung

Please do not step on or misuse any of the pieces. Check to see if your head piece is broken or your adjusters are not working correctly.

  1. udsDh3cJADJmsenD
    udsDh3cJADJmsenD
    teroY4oLXQEkq6O1

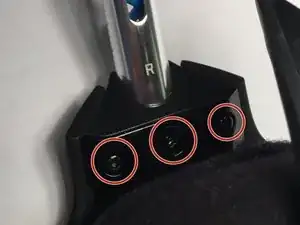

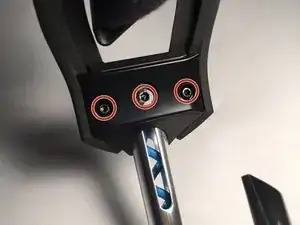

    • Remove the six screws—three from each side of the headband

    • These screws have been glued. Apply heat in order to loosen the adhesive.

    What size are the 4 Phillips head screws mine striped an the plastic head band melted

    moobsganja -

    Have the same problem - cannot unscrew those screws (even when I preheated them with soldering station). Have to drill throught them to remove. And now I cannot find the right size of the screws.

    Marcin Pietrzak -

    screw size m2.5x5mm

    Nick S -

    same these %#*@ cheap screws stripped. How did you guys get them out?

    dlee30 -

    Same. Used a soldering iron to heat up the screws, striped none the less. They probably not only glued them, but also screwed them on too tightly. The screws are pretty much fused into it.

    Matteo Neviani -

    What kind of driver is that for the middle screw

    jesking2220 -

  2. Srf6QLYhV5I1UpE4

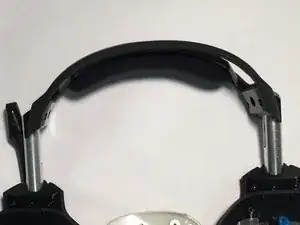

    • Remove the head piece from the ear pieces.

    • Separate the wire that connects the two ear pieces.

    • Replace or repair the broken head pieces.

    • A repair could be as simple as gluing the broken parts. When reinstalling to line up the adjusters correctly, make sure they function with the new parts before completely reassembling the head set.

Abschluss

To reassemble your device, follow these instructions in reverse order.
