Astro A50 Motherboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

15 - 30 Minuten

Einleitung

The guide allows for you to take apart and replace the channel selection switch on an Astro A50 gaming headset with only a Phillips head screwdriver.

  1. qRhEBJ3fOYObm2no
    qRhEBJ3fOYObm2no
    Zp3FYEYZ4tucLNPg

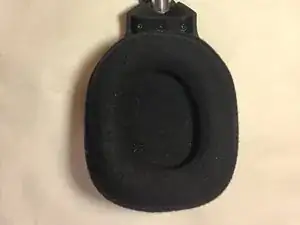

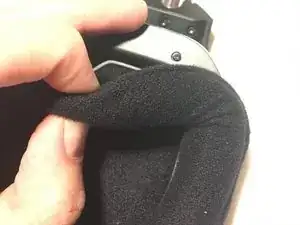

    • Remove the foam ear padding by pulling it straight to you

  2. ECgrEHrFTuTQMKS1

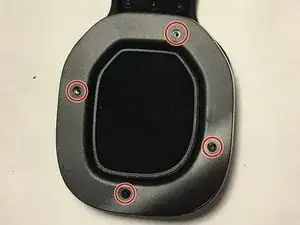

    • Remove the four 3.5mm Phillips head screws circled in red, and remove the grey cover

  3. kZOOmEWwRT5TBqnx

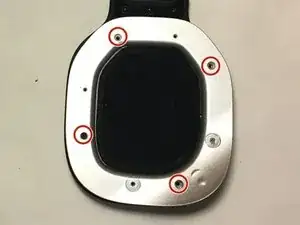

    • Remove the four 3.5mm Phillips head screws circled in red and remove the silver cover.

  4. FyxwYlRnIxyVlGt3
    FyxwYlRnIxyVlGt3
    kvii1OctRwwOaM13

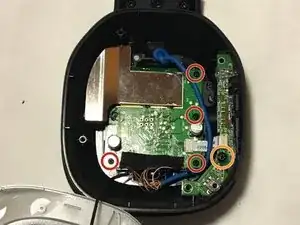

    • Remove the motherboard remove the four 3.5mm long Phillips head screws circled in red.

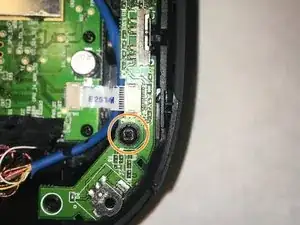

    • Remove the 3.5mm Phillips head screw circled in blue to remove secondary motherboard.

  5. I1aAIDiEQ3t5inF2

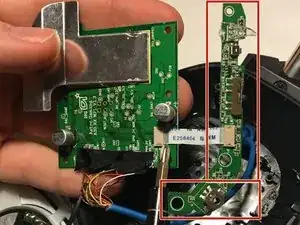

    • Separate the secondary mother board from the motherboard by pulling firmly to the right on the white connector.

Abschluss

To reassemble your device, follow these instructions in reverse order.
