Astro Mixamp Control Button Replacement

Geschrieben von: Hope Burns
  • Kommentare: 0
Astro Mixamp Control Button Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

15 Minuten

Einleitung

Use this guide to remove control buttons for cleaning or replacement.

  1. hhJPyTh3wpuvswvB
    hhJPyTh3wpuvswvB
    rqHyZhrKgIba41yp

    • Grip the dial tightly and pull straight off the device.

    • Repeat for the second dial

  2. RkOZPNpqJvyPxFTW
    RkOZPNpqJvyPxFTW
    HHUAQDVJDKU6YP2G

    • Using tweezers, remove the spacer nuts and washers from each dial post.

  3. Ba1AyCDwVheHgbIB
    Ba1AyCDwVheHgbIB
    LjhIEtPXRUpHSCQZ

    • Before opening your device, ensure the device is not on or connected to the charging cable.

    • Insert a plastic opening tool into the seam between the rubber foot and plastic casing.

    • Pull the rubber foot free of the plastic casing.

  4. eW2HtSN2Og2R2Q3k

    • Use a screwdriver to remove the screw from the rear casing.

  5. dek1mxJoCQSHAZ2R

    • Gently lift the rear casing from the device.

  6. DIepP6OM2LSEOrTf
    DIepP6OM2LSEOrTf
    cTAtkrlwdxN3knyc
    VZUpTpWhQLFYSLwE

    • Remove the four screws that hold the motherboard in place.

    • Only touch the edges of the motherboard. Touching the surface can damage the motherboard.

  7. NegPDhsRr4itGFNb

    • Gently pull the motherboard from the front cover.

  8. sVYEjIQXglmHVS4r
    sVYEjIQXglmHVS4r
    dJkin4iRXqKyoNGN

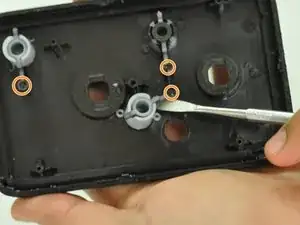

    • Gently insert a metal spudger under a control button housing.

    • Do not pry the button housing from the front panel, this can cause damage to the button.

    • Rotate the control button around the marked pin.

Abschluss

To reassemble your device, follow these instructions in reverse order.
