Astro Pyle PTBL7C Speakers Replacement

Geschrieben von: Abdulelah
  • Kommentare: 0
Astro Pyle PTBL7C Speakers Replacement

Schwierigkeitsgrad

Difficult

Schritte

3

Zeitaufwand

10 - 20 Minuten

Einleitung

This will guide you through the process of replacing your Astro Pyle PTBL7C's speakers.

  1. UhVcEwllPVxGDTTZ
    UhVcEwllPVxGDTTZ
    CBNeLJaSxQeK1qam

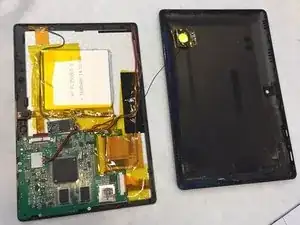

    • Slide the flat end of the spudger under the front edge of the screen and carefully pry it open.

    • The front edge is the side with the buttons on it.

    • You may hear a cracking sound when pulling the case off of the device. This is normal, and is just the clips being pulled apart. However, be careful and pull the clips slowly/cautiously to avoid damage.

    • Be aware of the speaker cable when removing the case, as it is still attached to the motherboard.

  2. 3HRmgBUrGqADgddE

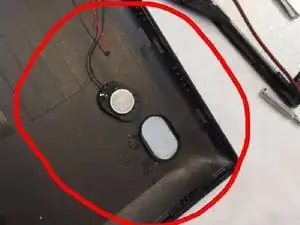

    • Locate the Speakers; they should be attached to the case as shown.

    • Follow the wires back to the motherboard, removing all tape covering the wires along the way.

    • This will make it easier to move the wires around.

    • Desolder the black wire from the motherboard. This will separate the speakers from the board, allowing you to replace them.

    • Exercise EXTREME caution while soldering. It is very easy to burn yourself, or damage the surrounding components. For a basic guide of how to desolder, follow this link: http://www.dummies.com/programming/elect...

Abschluss

To reassemble your device, follow these instructions in reverse order.
