Asus 1015E-DS03 Hard Drive Replacement

Geschrieben von: TJ Hanley

Kommentare: 8

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

Keine Schätzung

Einleitung

Replacing a hard drive may be necessary if you are experiencing frequent crashes, data loss or file corruption. You also can upgrade the hard drive to store more data. Either way, just follow this simple guide!

Werkzeuge

Schritt 1

Hold the laptop using both hands with the battery facing upwards.

Halten Sie den Laptop mit beiden Händen so, dass der Akku nach oben zeigt.

markus fri - 06/01/21

Schritt 2

Push the two tabs located below the battery in towards each other using your thumbs.

Drücken Sie die beiden Laschen, die sich unterhalb der Batterie befinden, mit den Daumen aufeinander zu.

markus fri - 06/01/21

Schritt 3

Push the battery upwards and out of the laptop as shown.

Schieben Sie den Akku wie abgebildet nach oben und aus dem Laptop heraus.

markus fri - 06/01/21

Schritt 4

Continue to push the battery upwards until it is completely separated from the laptop as shown.

Schieben Sie den Akku weiter nach oben, bis er wie abgebildet vollständig vom Laptop getrennt ist.

markus fri - 06/01/21

Schritt 5

Once the battery is removed, unscrew the highlighted 3mm screws (4) using a #0 Phillps head screwdriver.
Be very careful not to lose the screws, these four screws are very small.

Schritt 6

After all four screws are removed, flip the laptop over with the keyboard facing up.

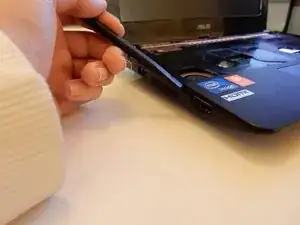

Use a spudger to pry up where the keyboard is attached to the laptop on all sides until it is detached from the laptop.
It is normal to hear cracking noises when prying off the keyboard.
After keyboard is detached from laptop, there is a ribbon cable still attached to the motherboard. See next step before completely removing keyboard.

I started with the 2 sides of the keyboard. Then the rear edge has 5 tabs in the battery compartment, which seem to be critical to getting the keyboard off. The front edge of the keyboard does not need to be pried off. It has metal tabs that slide into slots.

Matt Knutson - 21/11/19

Schritt 7

After the keyboard is detached, the ribbon cable which connects the keyboard to the laptop's motherboard is exposed.
Be careful not to tear or rip the ribbon cable.

Schritt 8

Using the spudger push the white clips upwards that are holding the cable.

Schritt 9

Gently pull the strip out of the square slot.

How do you remove the black metal cover on top of the motherboard? See your second photo.

John Suomi - 29/07/17

If anyone still needs this answered, in the 1015PX I've opened up again recently, there are another 6 screws (I think) attaching the black cover to the motherboard/bottom case, then you need to prise the wrist/touchpad section up with a spudger because it's all one moulding.

Neil Hughes -

Schritt 10

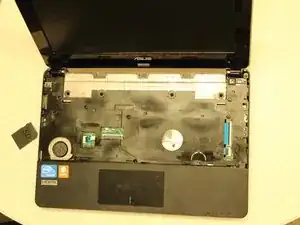

Once the keyboard is removed, the base plate will be exposed
Please note that 1 screw will be covered by the warranty sticker (not shown). To complete this step it is necessary to break the warranty sticker which voids the laptop warranty.

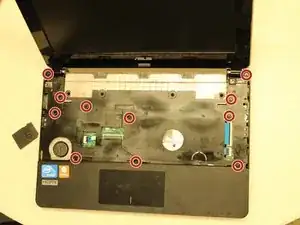

Remove the 3mm screws (11) using a #0 Phillips head screwdriver

Schritt 11

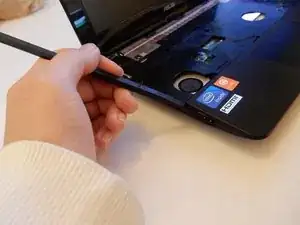

Use the spudger to 'pop' open the track-pad base, starting from the corner shown

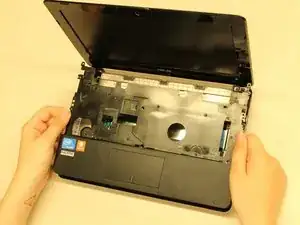

Once the corner is popped it may be easier to use your fingers to pop off the entire track-pad base
You will hear popping. Although this is normal, use caution pulling the track-pad base from the rest of the laptop

Schritt 12

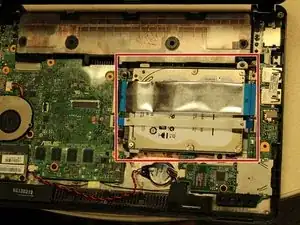

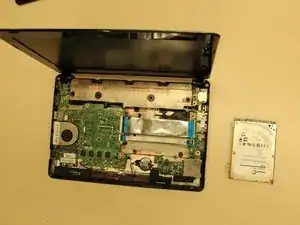

You can now lift both sections of the base, exposing the hard drive.

Schritt 13

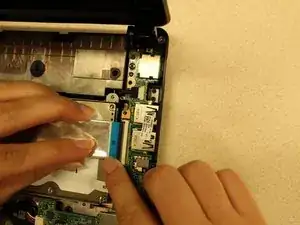

Release the two ZIF connectors that are labeled "IO"
The white bar flips away from the ribbon cable, then the ribbon cable can be gently pulled and removed from the connector
