Asus 1015E-DS03 Motherboard Replacement

Geschrieben von: Joe Capriola
  • Kommentare: 7
Asus 1015E-DS03 Motherboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

12

Zeitaufwand

5 Minuten

Einleitung

This guide will demonstrate how to remove the motherboard. A spudger and screwdriver will be used.

  1. WQWVNDf1EUMI3omJ

    • Hold the laptop using both hands with the battery facing upwards.

    Halten Sie den Laptop mit beiden Händen so, dass der Akku nach oben zeigt.

    markus fri -

  2. IRfLcKF12TecnvCv

    • Push the two tabs located below the battery in towards each other using your thumbs.

    Drücken Sie die beiden Laschen, die sich unterhalb der Batterie befinden, mit den Daumen aufeinander zu.

    markus fri -

  3. 6UWsrGaMahc1iWva

    • Push the battery upwards and out of the laptop as shown.

    Schieben Sie den Akku wie abgebildet nach oben und aus dem Laptop heraus.

    markus fri -

  4. UpLZp2uuReSJnCCe

    • Continue to push the battery upwards until it is completely separated from the laptop as shown.

    Schieben Sie den Akku weiter nach oben, bis er wie abgebildet vollständig vom Laptop getrennt ist.

    markus fri -

  5. osKhYBnqWbKPtW1B

    • Once the battery is removed, unscrew the highlighted 3mm screws (4) using a #0 Phillps head screwdriver.

    • Be very careful not to lose the screws, these four screws are very small.

  6. UUW3N3XyQfrHCMLG
    UUW3N3XyQfrHCMLG
    IkH5GYSUKiwKExWK

    • After all four screws are removed, flip the laptop over with the keyboard facing up.

    • Use a spudger to pry up where the keyboard is attached to the laptop on all sides until it is detached from the laptop.

    • It is normal to hear cracking noises when prying off the keyboard.

    • After keyboard is detached from laptop, there is a ribbon cable still attached to the motherboard. See next step before completely removing keyboard.

    I started with the 2 sides of the keyboard. Then the rear edge has 5 tabs in the battery compartment, which seem to be critical to getting the keyboard off. The front edge of the keyboard does not need to be pried off. It has metal tabs that slide into slots.

    Matt Knutson -

  7. HQuP23CwBBv3YeJ5

    • After the keyboard is detached, the ribbon cable which connects the keyboard to the laptop's motherboard is exposed.

    • Be careful not to tear or rip the ribbon cable.

  8. V2JeifKoQ1bSCDLH

    • Using the spudger push the white clips upwards that are holding the cable.

  9. XKJNUPWrqBAibmDj
    XKJNUPWrqBAibmDj
    JMN2btZYBseZr3WV

    • Gently pull the strip out of the square slot.

    How do you remove the black metal cover on top of the motherboard? See your second photo.

    John Suomi -

    If anyone still needs this answered, in the 1015PX I've opened up again recently, there are another 6 screws (I think) attaching the black cover to the motherboard/bottom case, then you need to prise the wrist/touchpad section up with a spudger because it's all one moulding.

    Neil Hughes -

  10. oewTKDhiQjchFCET

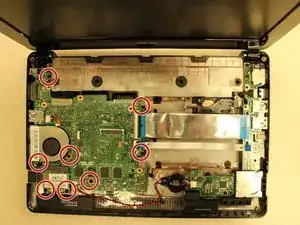

    • Remove the 3mm screws (8) from the motherboard using a #0 Phillips head screwdriver.

    • Carefully and slowly lift the motherboard out of the base of the laptop.

    • In the picture shown, the hard drive has already been removed, although, it is not necessary to remove the hard drive in order to remove the motherboard. Simply disconnect the two ZIF connectors from the hard drive that are labeled "IO" as shown in the picture and leave the hard drive in place.

  11. VVe2kOpbZEQKxOiK
    VVe2kOpbZEQKxOiK
    QZtvic5Ecvt2eObs
    xhYtqe2pgAxTdTSa

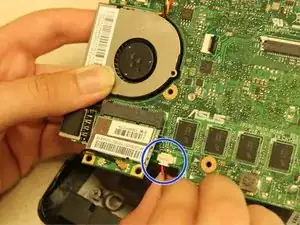

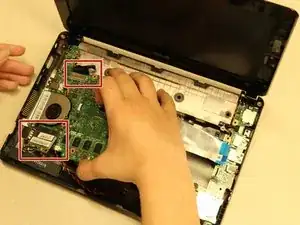

    • Detach the 3 components (2 wires and 1 chip) prior to completely removing the motherboard.

    • Gently pull on the wire until it comes loose.

    • The wire will offer resistance, but firmly, yet gently, pulling on the wire will release it from its dock.

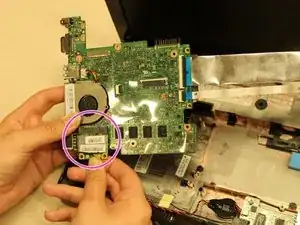

    • Gently pull the chip out of its dock.

  12. CWJkQi5GESca5nYl
    CWJkQi5GESca5nYl
    TDPWwcdpiKOuNhbD

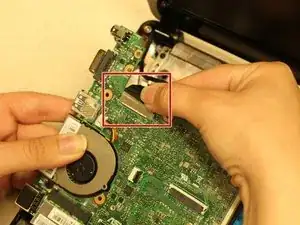

    • Gently pull out the final cord.

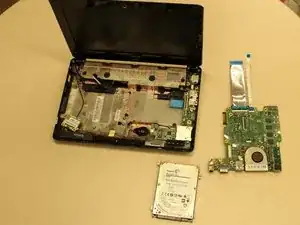

    • When the wires and chip have been successfully detached from the motherboard, your laptop (and the removed pieces) should resemble the picture.

Abschluss

To reassemble your device, follow these instructions in reverse order.
