Asus 1015E-DS03 Screen Replacement

Geschrieben von: Becca Day
  • Kommentare: 4
Asus 1015E-DS03 Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

12

Zeitaufwand

Keine Schätzung

Einleitung

The following guide will help the user remove the screen. The screen trim can been removed using a spudger. A Phillips #0 screwdriver is needed to remove the screws keeping the screen attached to the laptop.

  1. WQWVNDf1EUMI3omJ

    • Hold the laptop using both hands with the battery facing upwards.

    Halten Sie den Laptop mit beiden Händen so, dass der Akku nach oben zeigt.

    markus fri -

  2. IRfLcKF12TecnvCv

    • Push the two tabs located below the battery in towards each other using your thumbs.

    Drücken Sie die beiden Laschen, die sich unterhalb der Batterie befinden, mit den Daumen aufeinander zu.

    markus fri -

  3. 6UWsrGaMahc1iWva

    • Push the battery upwards and out of the laptop as shown.

    Schieben Sie den Akku wie abgebildet nach oben und aus dem Laptop heraus.

    markus fri -

  4. UpLZp2uuReSJnCCe

    • Continue to push the battery upwards until it is completely separated from the laptop as shown.

    Schieben Sie den Akku weiter nach oben, bis er wie abgebildet vollständig vom Laptop getrennt ist.

    markus fri -

  5. QWIGFXSjTWPeflhE

    • Push up on the back of the tabs that cover the hinges connecting the screen to the base of the laptop.

    • While pushing up on the back of the tabs, insert the spudger into the opening created from pushing on the tabs until the tab detaches.

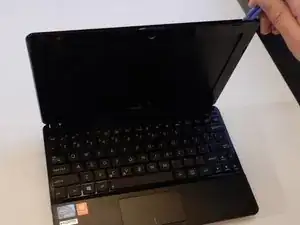

  6. 4phKCSitemWfPSjR
    4phKCSitemWfPSjR
    NFcNMuNQMOhvtQoR

    • Once the case has been separated from the laptop, pull the case off completely, using the plastic opening tool or your fingers.

    • You will hear popping noises which are to be expected.

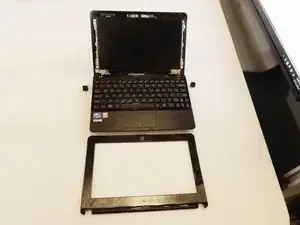

  7. dLNhoAGSKKDPnpTl

    • When the screen case has been successfully removed, the laptop should resemble the photo shown here.

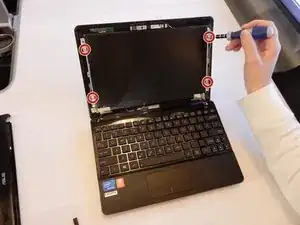

  8. rOxM1dLB1uNRMpXb

    • Unscrew the 3 mm screws (4) using a #0 Phillips head screwdriver.

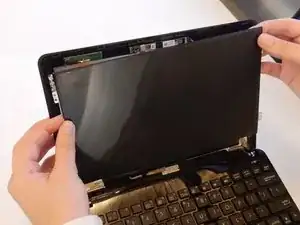

  9. oYELZxapagrKRHoC
    oYELZxapagrKRHoC
    FIsfMYNslmoCk1ng

    • Lift the screen away from the computer.

    • Be careful removing the screen, as the left side is still connected to the computer.

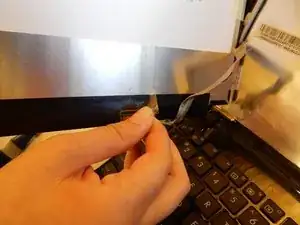

  10. TiGCTXgxwLUppRFX
    TiGCTXgxwLUppRFX
    3FhM2kmHPKGUI1HF

    • Remove the wire that is glued to the back of the screen with your fingers.

    • Remove the tape covering the connection port.

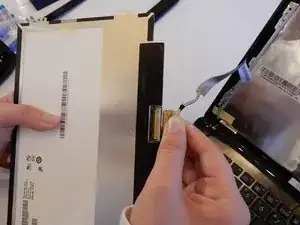

  11. FFbRsrBgeVSN5t1K

    • Separate the screen from the computer by gently pulling it out.

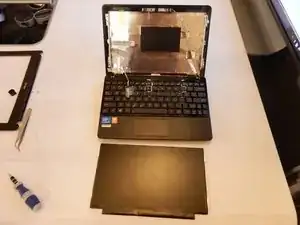

  12. SAYIEhUucMtmVJRU

    • Upon removal, the computer should look like this picture.

Abschluss

To reassemble your device, follow these instructions in reverse order.
