Einleitung

  1. vmQpArO1uM2EbMO1
    vmQpArO1uM2EbMO1
    6cckmFB3bRfBoGGK
    • Place the laptop face down with the battery facing away from you.

    • Locate the two buttons next to the battery.

    • Slide the right slider to the unlocked (red) position.

  2. ZZWqcVfj6l1AMltt
    ZZWqcVfj6l1AMltt
    TiJTpB1YyREPOYBC
    • Hold the left button to the left.

    • Slide the battery with your other hand away from you and it should disconnect.

  3. 1lpuEPnnF1NXZHag
    1lpuEPnnF1NXZHag
    DA1XISPlNEohVl3F
    L5CfIBWCJAZimYcV
    • Remove the five Phillips # 0 screws from the back panel.

    • Using your finger or a plastic spudger start to carefully pry up the back planel.

  4. GakFPyJxivmrGZIV
    GakFPyJxivmrGZIV
    YJ6FGOR3t1Xiaduj
    • Slide the back panel away and remove the panel.

  5. YEKGyv2QFYJTCXHa
    YEKGyv2QFYJTCXHa
    16wHvjAwOKgJCZPR
    nPVO6Zg1bNZMA1Yf

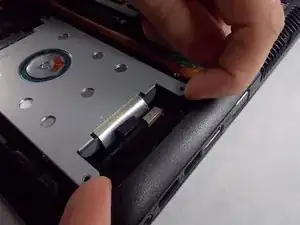

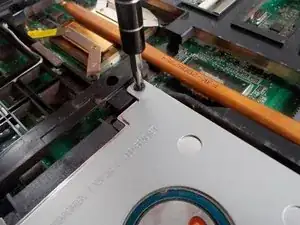

    • Remove the four Phillips #0 screws holding the hard drive case to the laptop.

    • Lift the hard drive upwards by the two arms in order to remove the hard drive case from the laptop.

  6. nQL4OZpkp3LrYbxx
    nQL4OZpkp3LrYbxx
    bVobROkOuOC1jodv
    • Using a Phillips #0 screwdriver, remove the cage screws on the side of the hard drive.

  7. mTnSdDMTZ2WcgZMa
    mTnSdDMTZ2WcgZMa
    desTSMUe4CgpQZ66
    • Next, slide the case off of the broken hard drive.

    • Slide the working hard drive into the case and screw it on.

Abschluss

To reassemble your device, follow these instructions in reverse order.
