Einleitung
This guide will teach you how to open the laptop with a screwdriver, identify and safely remove the broken WiFi card, and replace it with a working one.
-
-
Place the laptop face down with the battery facing away from you.
-
Locate the two buttons next to the battery.
-
Slide the right slider to the unlocked (red) position.
-
-
-
Hold the left button to the left.
-
Slide the battery with your other hand away from you and it should disconnect.
-
-
-
Remove the five Phillips # 0 screws from the back panel.
-

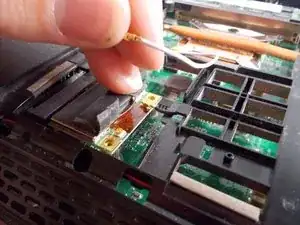

Using your finger or a plastic spudger start to carefully pry up the back planel.
-
-
-

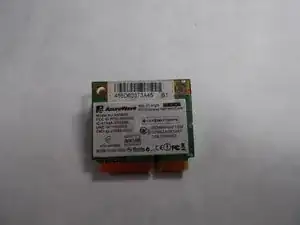

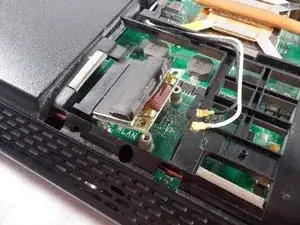

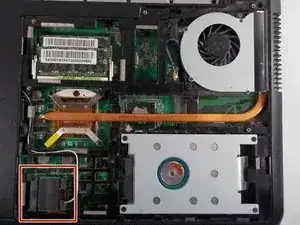

First, find the Wi-Fi card
-

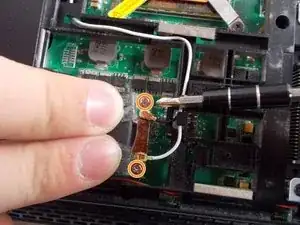

Move the protective flap back and use a Phillips size 0 screw driver to remove the two screws.
-
To reassemble your device, follow these instructions in reverse order.
