Asus A53E-ES92 RAM Card Replacement

Geschrieben von: Robyn Lam
  • Kommentare: 0
Asus A53E-ES92 RAM Card Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

10 Minuten

Einleitung

This guide will show you how to remove the RAM on an Asus A53E-ES92.

  1. papE6kIuoKWmQRw5

    • Turn laptop over to expose the bottom panel.

  2. aHIx6RA1NxVoXVsk
    aHIx6RA1NxVoXVsk
    wKgtTN6eGXfNOBT6

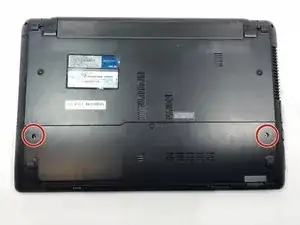

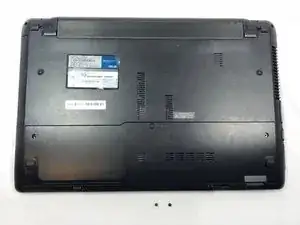

    • Use the Phillips #0 screwdriver to remove the two screws circled in picture.

  3. V2BdmrjDsJAjLv1A
    V2BdmrjDsJAjLv1A
    ASOm21DFDcExYebQ
    hYhJNmVQFOWgIb11

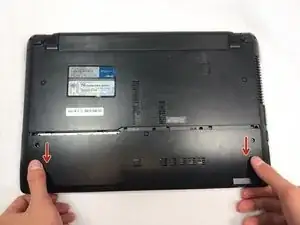

    • Place fingers on panel as shown below.

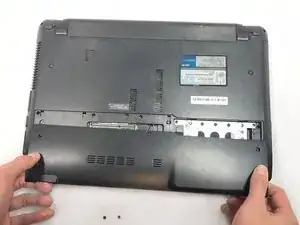

    • Apply slight force while gently sliding the panel away from the laptop.

    • Remove panel.

  4. DyMfRREOqvp5o6qI
    DyMfRREOqvp5o6qI
    JTmUd4KHpmFdDVpF

    • Locate RAM card, circled adjacently.

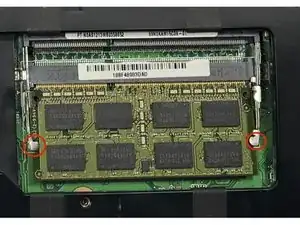

  5. gBendEDxwOWQYx1d
    gBendEDxwOWQYx1d
    gihe2EEIaCrBsmdW
    PpwwQ4PdNJMqqtBa

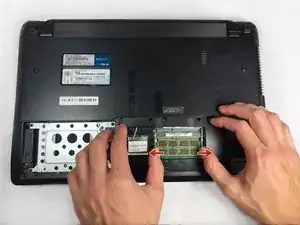

    • Place fingers on prongs located adjacent.

    • Press on prongs simultaneously.

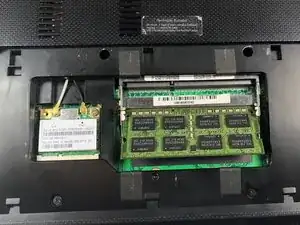

  6. V11rMBF5UMgBM2jf
    V11rMBF5UMgBM2jf
    dldy5KQGVfoaV5Bg
    l2pTQOGfc6FWGCgh

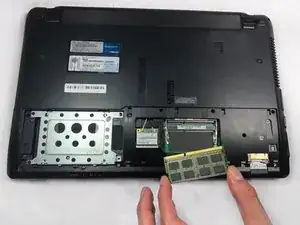

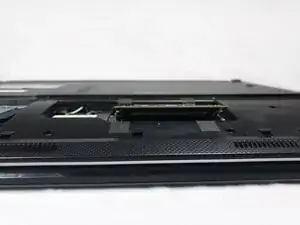

    • RAM card should pop out.

    • Remove RAM card.

Abschluss

To reassemble your device, follow these instructions in reverse order.
