Asus A53E-ES92 Wifi Card Replacement

Geschrieben von: Robyn Lam
  • Kommentare: 0
Asus A53E-ES92 Wifi Card Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

10 Minuten

Einleitung

This guide will show you how to remove the wifi card on an Asus A53E-ES92.

  1. SXHsJGgYomehFxb3

    • Turn laptop over to expose the bottom panel

  2. OAVvFkaRQUhKx1Tn
    OAVvFkaRQUhKx1Tn
    1H6yUN6vUN2m6gYH

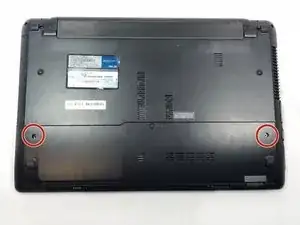

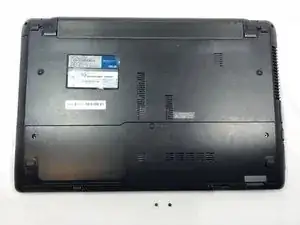

    • Use a Phillips #0 screwdriver to remove the two screws circled in picture.

  3. opQhWeddrQF36xbG
    opQhWeddrQF36xbG
    NDm1fH4KquLZK2TN
    cqEQDn1iiHsUWCRF

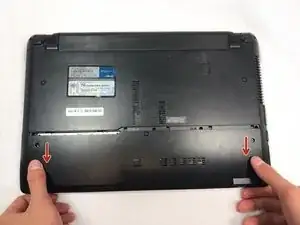

    • Place fingers on panel as shown below.

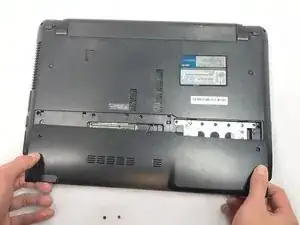

    • Apply slight force while gently sliding the panel away from the laptop.

    • Remove panel.

  4. bpBeP3PxQrLxSx5J
    bpBeP3PxQrLxSx5J
    NU5uLuoSuXDLteZ6

    • Locate wifi card, circled in red.

  5. 5jhAZHeRIWKpyo2n
    5jhAZHeRIWKpyo2n
    ROkDGmIRlLmgSAwr

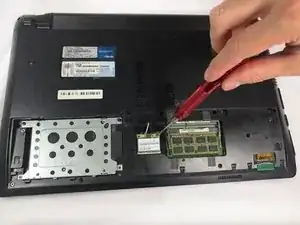

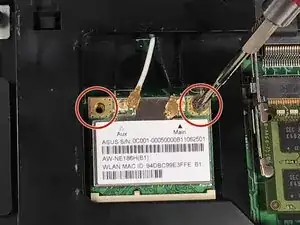

    • Remove the two screws using the Phillips #0 screwdriver.

  6. wNPnxRHxHBJD6KDP
    wNPnxRHxHBJD6KDP
    43nyIvXQ3ZuPhF1Y

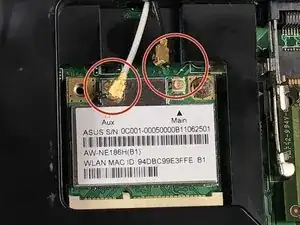

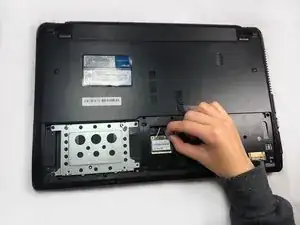

    • Remove the two pin connectors from the wifi card.

  7. Qr5iV6kXL2TWNrv2

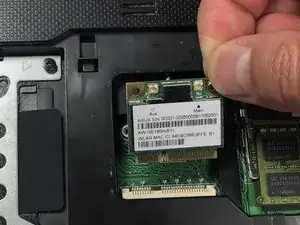

    • Remove the Wi-Fi card from the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
