Einleitung
Is your computer heating up quickly or making loud noises? Consider using this guide to replace the fan in your device.
Werkzeuge
-
-

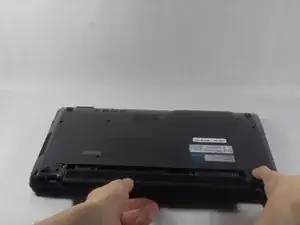

Move the two sliders towards the outer edge of the laptop.
-
Pull the battery out with your left hand while holding the right slider.
-
-
-

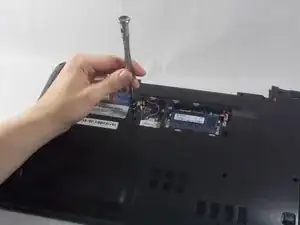

Remove the 5mm screw using a Phillips #1 screwdriver.
-

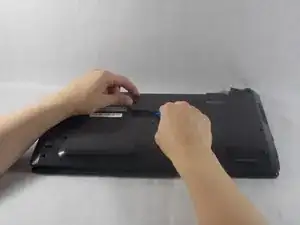

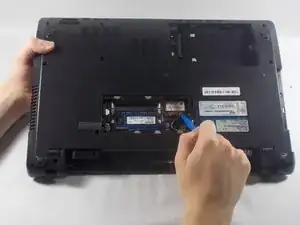

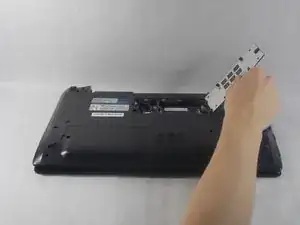

Use the iFixit opening tools to remove the RAM panel.
-
-
-

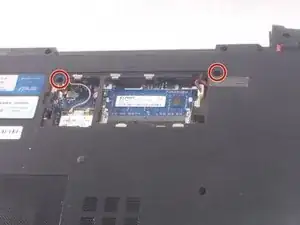

Remove the 7mm screw using a Phillips #1 screwdriver.
-

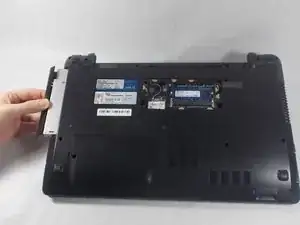

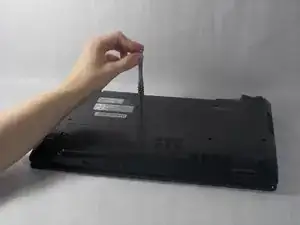

Pull the optical drive out from the side of the laptop.
-
-
-
Remove the RAM cover from the bottom of the keyboard.
-
Remove the 5mm screw keeping the panel in place using a Phillips #1 screwdriver.
-

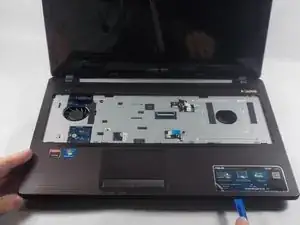

Work the pry tool along the edge to finish removal.
-

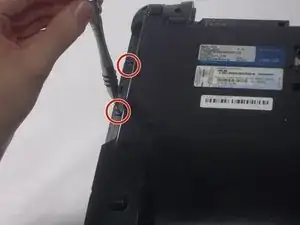

Unscrew the two 7mm screws marked with an engraved "K" using a #1 Phillips screwdriver.
-
-
-
Orient the computer so the keyboard is facing toward you with the screen at the top.
-
Find the three buttons to depress at top of the keyboard, set in the crack between the casing and the keyboard, highlighted here in red.
-

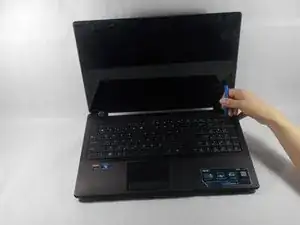

Use the pry tool to depress the buttons. The keyboard should pop out.
-
-
-

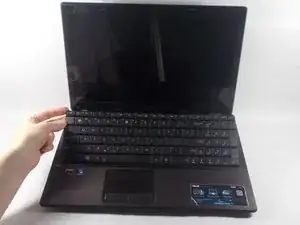

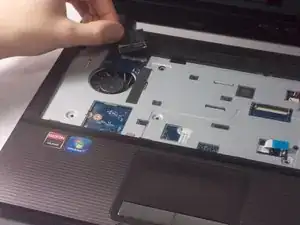

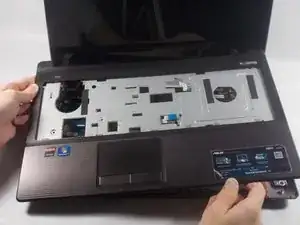

Fold the keyboard out towards you. It should still be connected by a ribbon to the rest of the computer.
-

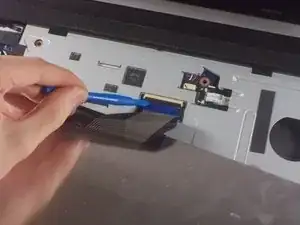

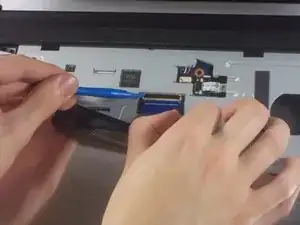

Gently use the opening tool to lift the black piece holding the ribbon down and remove the ribbon.
-
-
-

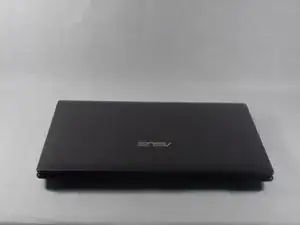

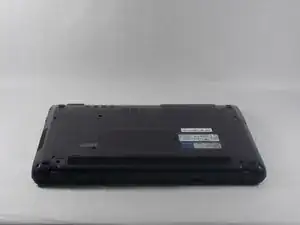

Close the laptop and place it upside down.
-

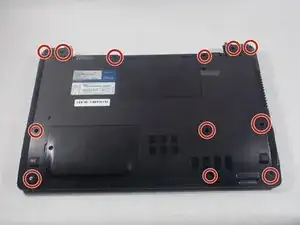

Remove the twelve 7mm screws using a Phillips #1 screwdriver.
-
-
-
Pull the connectors away from the wireless card using the plastic opening tools.
-

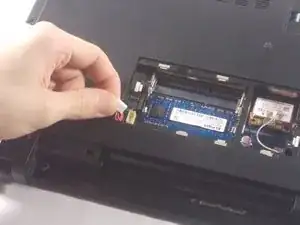

Pull the white connector from its socket in the RAM panel.
-
-
-

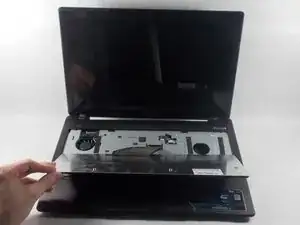

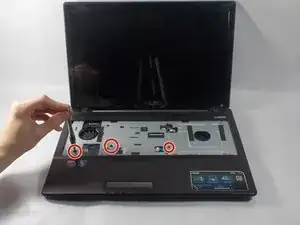

Flip the laptop over again, open it, and unscrew the three 7mm screws using a Phillips #1 screwdriver.
-
-
-

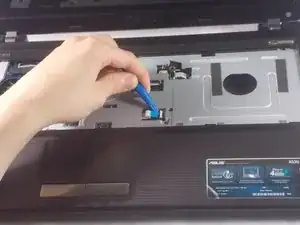

Gently pull the tan flap off of the cable using the plastic opening tool.
-

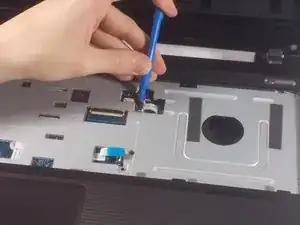

Push the tan piece towards the cable and release it using the plastic opening tool.
-
Pull the black flap off of its connector.
-
-
-

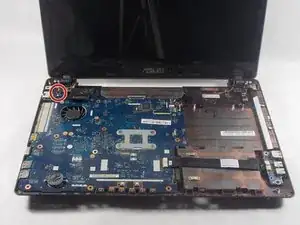

Remove the single 7mm screw from the motherboard using a Phillips #1 screwdriver.
-

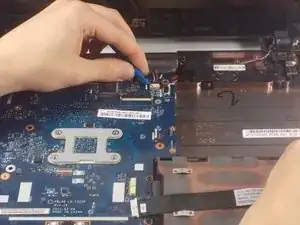

Pull to two shown cables from their sockets using the plastic opening tools.
-
Gently remove the motherboard from the laptop.
-
-
-

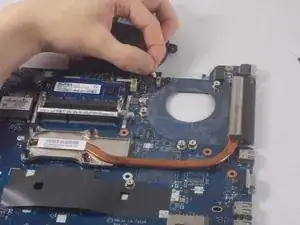

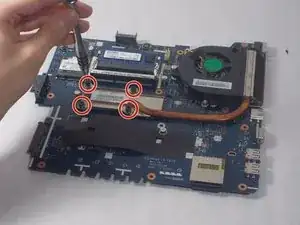

To remove the heat sink, unscrew the four 7mm screws using a Phillips #1 screwdriver.
-
Remove the heatsink from the device.
-
-
-

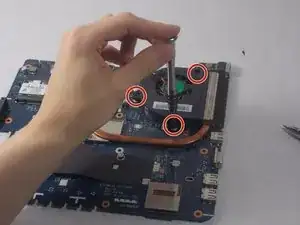

To remove the fan, unscrew the three 5mm screws using a Phillips #1 screwdriver and pull the shown cable from its socket.
-
To reassemble your device, follow these instructions in reverse order.
