Asus A53U-ES21 RAM Replacement

Geschrieben von: Kenae Brooks
  • Kommentare: 0
Asus A53U-ES21 RAM Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

4 - 5 Minuten

Einleitung

The RAM of your computer acts as the computer's "working" memory. The operating system and every program, application, and process requires memory to operate. The more memory your computer has available, generally speaking, the more it can do at once. Replacing your Asus A53U-ES21's RAM with faster and larger memory can noticeably improve its performance.

  1. nVJAaCaLtQ4OYbFZ
    nVJAaCaLtQ4OYbFZ
    nRqYEB1jquGXcDnG

    • Make sure the laptop is off.

    • Flip the laptop upside down so that the battery is facing you.

  2. 5EqEMwEhUymjJwFD
    5EqEMwEhUymjJwFD
    EwDU3o3vqUEK515J

    • Move the two sliders towards the outer edge of the laptop.

    • Pull the battery out with your left hand while holding the right slider.

  3. 4XMsZ4odPZVhlJQj
    4XMsZ4odPZVhlJQj
    RZZarYLXZVV4ew2l

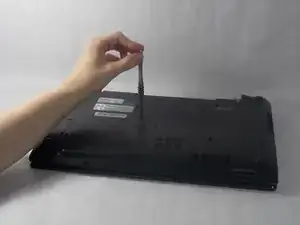

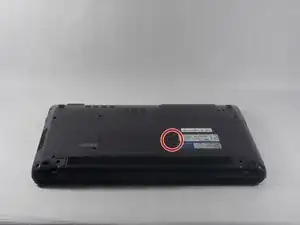

    • Remove the 5mm screw holding the RAM panel in place with a Phillips #1 screwdriver.

  4. h3eOgKMpY1ncALSm
    h3eOgKMpY1ncALSm
    b2ZfMwRVSOZuiuQB

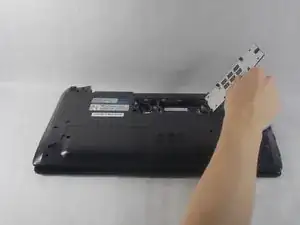

    • Remove the panel using the plastic opening tools.

    • Slide the tool along the edge to release the multiple catches keeping it secure.

  5. tYURCIALKYybQyKf
    tYURCIALKYybQyKf
    1u4kIQ4IiedYjDy4
    blOwILZjaTq2BSJ4

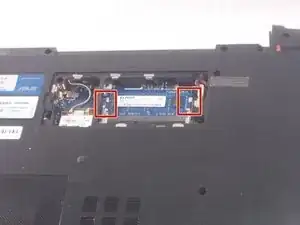

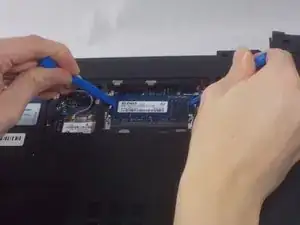

    • Use plastic opening tools to move the metal clips holding the RAM in place outwards.

  6. 3xYdGTQlnbAVChmG

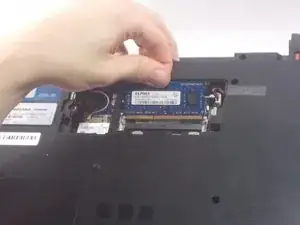

    • Gently pull the RAM out of its slot.

Abschluss

To reassemble your device, follow these instructions in reverse order.
