Asus A53U-ES21 Wireless Card Replacement

Geschrieben von: Chase Poirier
  • Kommentare: 0
Asus A53U-ES21 Wireless Card Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

7 - 8 Minuten

Einleitung

The wireless card is how your laptop communicates with Wi-Fi networks. Newer protocols are developed and introduced over the years that can improve wireless speed and security, but only if the wireless card is capable of understanding them. Upgrading your Asus A53U-ES21's wireless card can increase the speed of downloading, streaming, and general communication of the Internet.

  1. nVJAaCaLtQ4OYbFZ
    nVJAaCaLtQ4OYbFZ
    nRqYEB1jquGXcDnG

    • Make sure the laptop is off.

    • Flip the laptop upside down so that the battery is facing you.

  2. 5EqEMwEhUymjJwFD
    5EqEMwEhUymjJwFD
    EwDU3o3vqUEK515J

    • Move the two sliders towards the outer edge of the laptop.

    • Pull the battery out with your left hand while holding the right slider.

  3. rjVsPEPCki3UdI2K
    rjVsPEPCki3UdI2K
    TXXUqQPI3j3UOaNQ
    SsYV5TTVgMh1EtyW

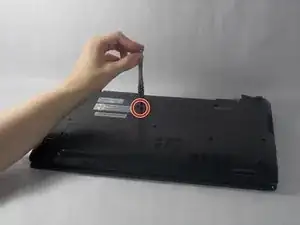

    • Remove the 5mm screw using a Phillips #1 screwdriver.

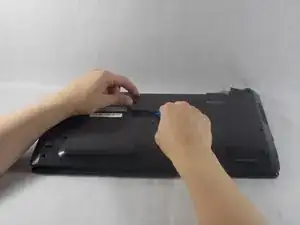

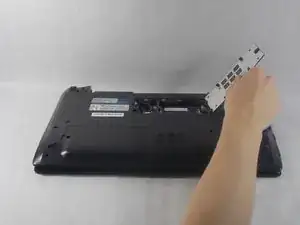

    • Use the iFixit opening tools to remove the panel.

  4. iQrf2WPqFBLvIBet
    iQrf2WPqFBLvIBet
    UdaohiIEYSqjL3rO
    RdWEP4BVlNBKYb1b

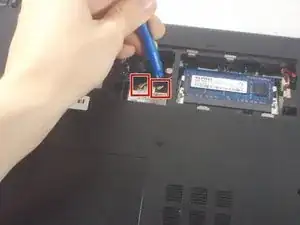

    • Detach the two cables connected to the wireless card (the opening tool works well for this).

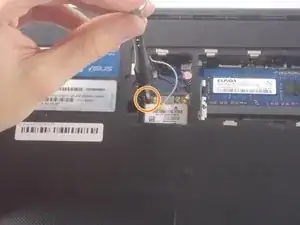

    • Remove the 4mm screw (highlighted in orange).

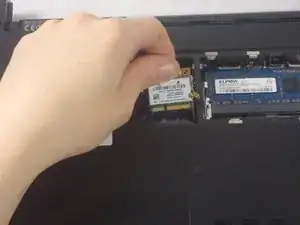

    • Pull the wireless card up and remove it from the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
