Asus CM1745 Power Supply Unit Replacement

Geschrieben von: Aaron Stanfield
  • Kommentare: 0
Asus CM1745 Power Supply Unit Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

5 - 10 Minuten

Einleitung

Use this guide to replace your Desktop PC Power Supply Unit.

  1. YMQZdZoIrsOPUyAp

    • Before opening your desktop PC, make sure to turn it off using the power button.

    • After powering it off, unplug the power cable.

  2. q6xcVNxiyl6bcorp

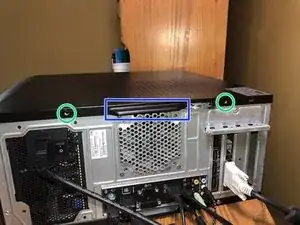

    • Unscrew the 2 Phillips screws as shown.

    • After removing screws, slide the panel off using the handle.

  3. GGEpZ4umdh63LFTl
    GGEpZ4umdh63LFTl
    ZpUDnpuKmeEi2MSm

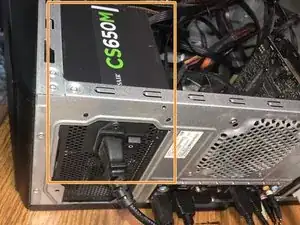

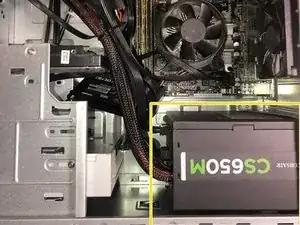

    • Locate the power supply unit which was connected to the cable unplugged in Step 1.

  4. nRSD2IBbClhs2sot

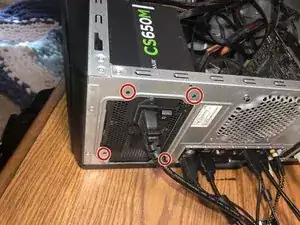

    • Unscrew Phillips screws from back of the desktop PC.

  5. HFIYuR6TLLIGXt4Z
    HFIYuR6TLLIGXt4Z
    DKWuCURpadHZ65bG

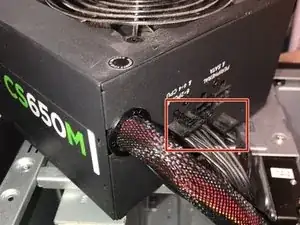

    • Unplug all attached cables from the Power Supply, then unplug the cable attached to the Motherboard inside the PC.

  6. gnWeYao5rGBRef42
    gnWeYao5rGBRef42
    KvSWLG51vWG1OZ3v

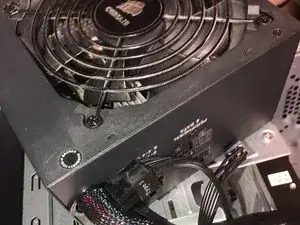

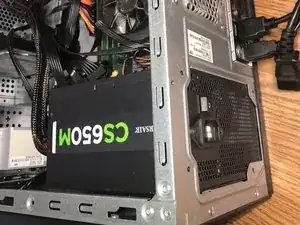

    • Once unplugged, you can plug in the cables into the new Power Supply and Motherboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
