Asus Chromebook C101P Screen Replacement

Geschrieben von: Dan Sysopha
  • Kommentare: 2
Asus Chromebook C101P Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

10 - 30 Minuten

Einleitung

The touch screen on the ASUS Chromebook C101P is great for work as a tablet or as a simple screen. Like other laptop screens, this one is equally susceptible to breaking or not responding. Replacing it is a little tricky, requiring not only the screen, but the hinge to be removed as well. It is advised to turn off the Chromebook before taking apart the screen.

  1. PZkvnt1KvSnLiSlm

    • Flip the Chromebook so that the bottom is facing up.

    • Remove the nine T5 Torx screws.

    Looks like there are nine screws in the picture.

    Prime Force -

  2. YspElSwYFZbNFOVE

    • Remove the four rubber grips on the bottom side of the Chromebook using an opening tool.

  3. A24e51DGSJkUQflT

    • Remove the four black screws where the rubber grips were.

    There are actually 5 screws, 2/2/1/0.

    Prime Force -

  4. mNUNrZ5jFsy3rcAm
    mNUNrZ5jFsy3rcAm
    R4HIIdNmMC4dyDwq

    • Reorient the Chromebook so the right side is facing upwards.

    • Wedge an opening tool or spudger between the keyboard (upper case) and the lower case of the bottom portion of the Chromebook.

  5. QnlQNyquf6yx1Rb2
    QnlQNyquf6yx1Rb2
    5ivADNl2hJIEVuIR
    WMCMyZxkf2lpmGhH

    • Pull back the black lever on the base of the cable. While pulling back, take your tweezers and pull back on the large ribbon cable.

    • Pull back the black lever on the base of the cable. While pulling back, take your tweezers and pull back on the small ribbon cable.

    • Separate the keyboard from the rest of the laptop.

  6. oJkRJO1sMrTIQZfN
    oJkRJO1sMrTIQZfN
    EJF2pkNh3kATIhqE

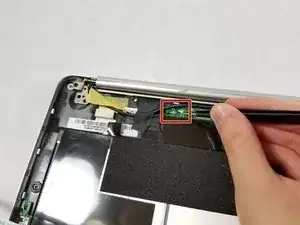

    • Detach the the screen cables from the motherboard using a pair of tweezers.

    • Peel off the tape or seal to easily remove the screen cables.

  7. YQNWvBCHXQbSal2n
    YQNWvBCHXQbSal2n
    Wsxi4IrTECEwxUMy

    • Remove the Phillips 00 screws from the hinges.

  8. VTdbEObEQSqPYCsD

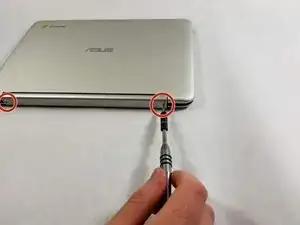

    • Angle the hinge as shown and use a T5 Torx screwdriver to remove the hinge screws.

  9. k5MhaQDwlTUDQ5Eo
    k5MhaQDwlTUDQ5Eo
    OeTixdwDS1kR5QAt

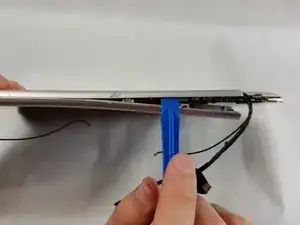

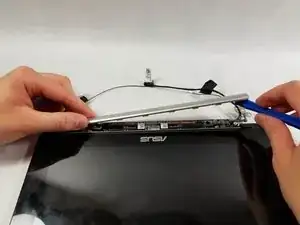

    • Pry open the hinge by using the iFixit opening tool.

  10. lomVAAmRkJoFxQPW

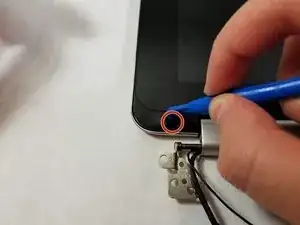

    • Use the iFixit opening tool to pop out the black rubber grips near the bottom of the screen.

    • Use a Phillips 00 screwdriver to remove the screws beneath the rubber grips.

  11. 4jjQqpPs6G2MuPPZ
    4jjQqpPs6G2MuPPZ
    yWGxYG6ExgMlITm2
    1WteKWrQRXrNeCGg

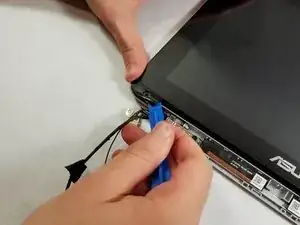

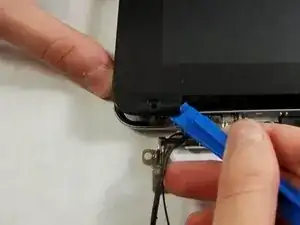

    • Use the iFixit opening tool to pry around the screen.

    • Use the space between the screen and the hinge to prop it up.

    • Once open, slide the wires that are in the hinge out. The screen should now be fully detached from the case.

Abschluss

To reassemble your device, follow these instructions in reverse order.
