Asus Chromebook C201 Keyboard Replacement

Geschrieben von: Robert Lawson
  • Kommentare: 5
Asus Chromebook C201 Keyboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

30 Minuten

Einleitung

If your Chromebook’s keyboard is not working correctly, then this guide is going to help you get your keys working the way they're suppose to. When working on replacing your keyboard, be sure to ground yourself. Static can short circuit your Chromebook, so be sure to either wear an anti-static wrist strap or work on a surface that doesn't generate static electricity, like wood, tile, or other hard floors.

  1. 3MjNsgJOYRIVMymw

    • Flip the laptop upside down with the rear end of the computer away from you.

  2. HNsFoTMnW6mNmHJw

    • Remove the two rear rubber feet by using one of the small, blue plastic spudgers.

    The feet are self-adhesive and VERY sticky, I found that the jimmy worked better than the spudger.

    MarteB -

  3. KrKGFNCkNkm1IBlA

    • Use the J0 screwdriver to remove the eight 5mm black screws on the bottom of the laptop, which includes the two that were hidden under the rear rubber feet.

  4. e3xCIMYHkx2F5bNR

    • Turn the laptop on its side. Use a small, blue opening tool to pry the keyboard cover and laptop apart. Begin from the top right, next to the power button, and slowly work your way around to the opposite side until the keyboard cover is detached.

    It's unfortunately easy to accidentally press the power button, Guess how I found that out.... three times. :)

    MarteB -

  5. nTHVvisOVdsehJVv
    nTHVvisOVdsehJVv
    TmNuYS1OYLIWSrcl

    • Gently flip the keyboard cover away from the laptop. Rest it safely upside down so the cables are not strained and are easily accessible.

  6. IRvwqSLL152MMQ16
    IRvwqSLL152MMQ16
    BPO2LVG31lhkaWNp
    MZ2lTgFYjupbMGEO

    • Use the metal spudger to gently pry up the small tabs that are clamping down on the keyboard cables.

  7. qgKppBByDRrULFG3
    qgKppBByDRrULFG3
    TK5nXEF1lCIpZ6Ch

    • Carefully pull the keyboard cables out of the connecting ports that are attached to the motherboard.

  8. I3rbdSQC1TgJ1SqL

    • Remove the keyboard cover and safely place it somewhere face down.

  9. gqD3L2qZVqN2nBRg

    • Use a J0 screwdriver to remove the two 3mm JIS 0 keyboard screws.

  10. Xj3pgkInDsTJCFMC

    • Pull the tape connecting the keys from the palm rest assembly.

  11. xyaFcX5rB1a13kff
    xyaFcX5rB1a13kff
    TNuiNKQRyoeUhmH6

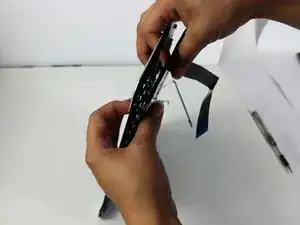

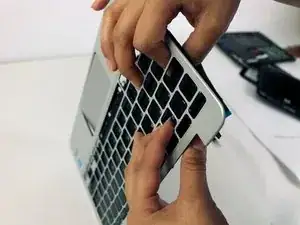

    • Gently, with force, pop the keyboard from the palm rest assembly.

    Mine had a metal backing plate which was plastic welded with through holes. It required a little persuasion with a putty knife but I got it.

    Thanks for the guide, I got into it and was looking at those small rivets trying to discern whether they were stand-offs, rivets, 1mm hex, or other - the answer was gently pry off the keyboard.

    Insidious DrNine -

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Robert Lawson

Mitglied seit: 10/02/16

841 Reputation

2 Kommentare

Thanks!

Took me about 30 minutes, despite losing a couple of screws (which I did find on the floor/chair), interruptions from kids, and forgetting to put a little rubber pad on the new keyboard, requiring almost complete re-disassembly and assembly.

Only real issue I had was that the old keyboard coming out was basically snapping off little bits of the white keyboard case. (The “gently with force” section.) I suspect that it’s designed as a one-way connection and removal will break those little snaps irrespective of what care is taken. But reassembling it seems to work without those snaps just fine.

Thanks!

Jake -

A couple more notes:

I did it without removing the cable for the touchpad at all. I didn’t see any reason to disconnect that.

After examining the old keyboard more carefully, I realized the plastic sheet on the bottom was removable (it’s just glued on) and should be affixed to the bottom of the old one, so once more I took it apart and added that back. (That sheet had probably saved the computer from killing more than the keyboard when coffee was spilled.)

Also, the two slightly longer screws go under the rubber feet.

Jake -
