Asus Chromebook C201PA-DS02-LG Keyboard Replacement

Geschrieben von: Brittany M Won
  • Kommentare: 0
Asus Chromebook C201PA-DS02-LG Keyboard Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

5 - 10 Minuten

Einleitung

Are your keys not clicking? Did you spill any liquids on your keyboard recently? This guide will help you resolve these situations.

  1. UNfFxmiyobYGV13V
    UNfFxmiyobYGV13V
    nYEER2DkXN6hMlxQ
    BlxAsu2KwxgEXLMH

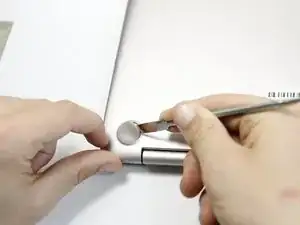

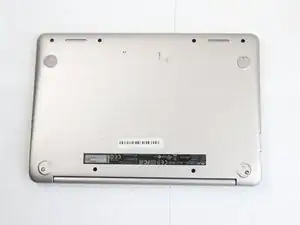

    • Use a metal spudger to pry off the two feet closest to the hinge of the laptop.

    • The feet are attached to the laptop by adhesives, therefore they may not stick as well after multiple removals.

  2. G4HJOSFUgAk15QKH
    G4HJOSFUgAk15QKH
    DenPongUsOOXNhug

    • Use a Phillips #0 screwdriver to unscrew the six 5mm screws.

    • Use a Phillips #0 screwdriver to unscrew the two 6mm screws.

  3. Xyv4ABBPGFGCCfXA
    Xyv4ABBPGFGCCfXA
    h2iYhGmcAFfecHaC

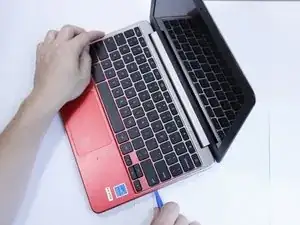

    • Use a plastic opening tool to pry the keyboard off the edges of the computer.

    • The edges will make a popping noise.

  4. NoxLAuSMfxUpJUq3
    NoxLAuSMfxUpJUq3
    AkIJkwLVykiHmvgg
    DZMvonCLje2amkdP

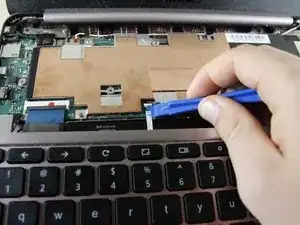

    • Flip up the white bar that connects the thin white strip using a plastic opening tool.

    • Grab the thin white strip and pull straight back to remove the strip from the connector.

  5. G1WxMTQnmDMRGsXS
    G1WxMTQnmDMRGsXS
    urqJV4eZLXIvFg6o
    U5i1ZbIKMGYNHxNh

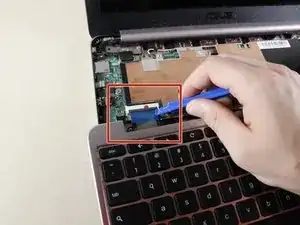

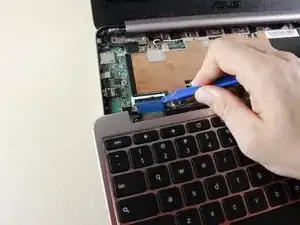

    • Use a plastic opening tool to lift the black bar above the wide black strip in the connector.

    • Grab the wide black strip and pull straight back to remove the strip from the connector.

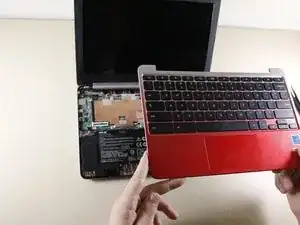

    • Remove the keyboard by lifting it straight up.

Abschluss

To reassemble your device, follow these instructions in reverse order.
