This is the replacement guide to replace the entire LCD assembly of the Asus Chromebook C213SA-YS02. This is a moderate procedure, and requires a purchase of the entire LCD assembly. This guide is used when your LCD display is not responding after troubleshooting has failed to solve the issue.
Werkzeuge
Ersatzteile
-
-
Power off the device by pressing and holding the power button on the side of the device.
-
Remove the power cable from the back of the device (if applicable).
-
-
-
Place the closed device on the table so that the back cover is facing up.
-

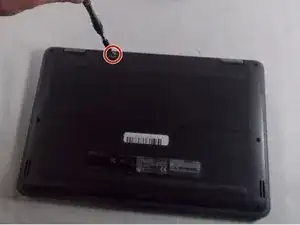

Remove the one black 4mm Phillips #00 screw on the back cover.
-

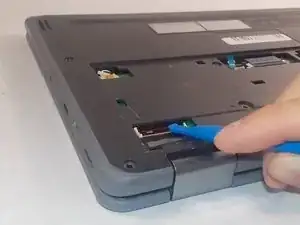

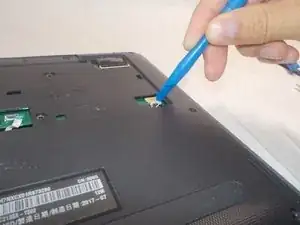

Place the iFixit opening tool in the slot and lift up the cover.
-
Slide the iFixit opening tool around the outside of the cover to remove it.
-
-
-

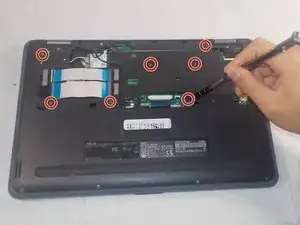

Remove the seven black 4mm Phillips screws underneath the back cover.
-
Remove the eight black 7mm Phillips #00 screws along the edge of the device.
-
Remove the single silver 2mm Phillips #00 screw from the top of the Wi-Fi card.
-
Carefully pull the white and black wires out of the card using tweezers.
-

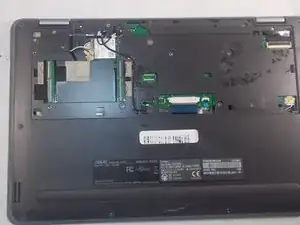

Remove the Wi-Fi card.
-
-
-

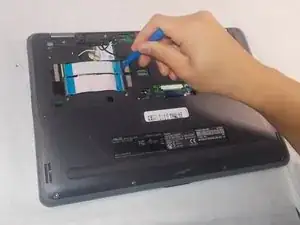

Unhook the two ribbon cables by using the iFixit opening tool to lift the black lock mechanisms up.
-
Slide the blue ribbon out of the lock mechanism.
-
Repeat these steps for both sides of each blue ribbon.
-
-
-
Using your iFixit opening tool, slide the black lock mechanism toward the serial label.
-
Repeat the step on the opposite side of the cable.
-
Slide the blue cable out of the port using a pair of tweezers.
-
-
-

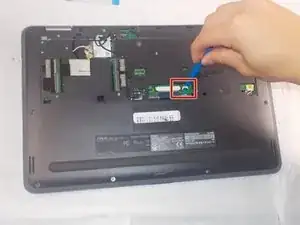

Remove the touchpad cable by lifting the black lock mechanism up by using your iFixit opening tool.
-
Gently slide the cable out of its port.
-
-
-
Use the iFixit opening tool to release both ends of the double male end of the speaker cable.
-
Disconnect the speaker cable from the port.
-
-
-
Disconnect the black LCD cable directly above the hinges of the device by using an iFixit opening tool to lift up the black lock.
-
Slide the black LCD cable out of the connection port.
-
-
-
Disconnect the black camera cable between the keyboard cable and the two blue ribbons which have been disconnected.
-

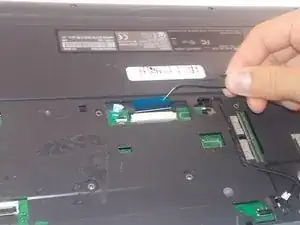

Using the tweezers, grab the wire end of the cable and carefully pull it away from the connection port.
-
Loosely place the disconnected cable away from the connection port.
-
-
-
Flip the device over and open up the LCD screen.
-

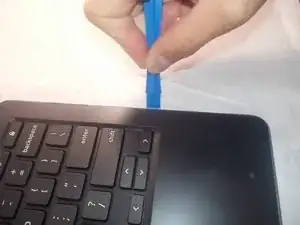

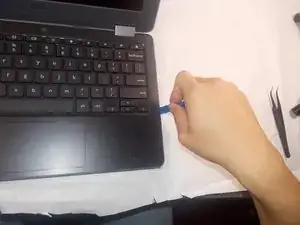

Using the iFixit opening tool, gently place the tool in between the back-plate and the keyboard and lift up.
-
Slide the tool around the outside of the keyboard and lift up the tool while moving it around the boundary of the keyboard.
-
Pull the keyboard away from the back-plate. Be careful the keyboard cable is not caught on the back-plate while performing this maneuver.
-
-
-

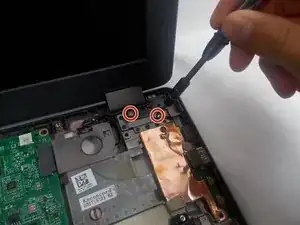

Remove the two 4mm Phillips #00 stainless steel screws on one of the hinges.
-
Repeat the last step for the opposite hinge.
-

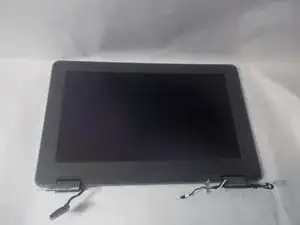

Carefully remove the LCD assembly off of the back plate. Be careful not to tug the LCD cable.
-
To reassemble your device, follow these instructions in reverse order.
