Asus Chromebook C300M USB Port Replacement

Geschrieben von: Rachel Cadle
  • Kommentare: 0
Asus Chromebook C300M USB Port Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

5 - 10 Minuten

Einleitung

This repair guide will give step-by-step instructions on how to remove the back of the Chromebook to remove and replace the USB Port.

  1. QHqPLHKFkEc36hVg
    QHqPLHKFkEc36hVg
    KZi2khlpuOK6JQCl

    • Flip the chromebook on its front.

    • Remove the screws on the back using the Phillips #1 screwdriver.

    • Remove the six 8mm screws.

    • Remove the five 5mm screws.

  2. Xfr6oJI5PNRZBOTr

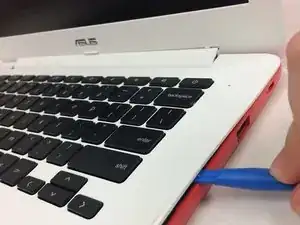

    • Separate the plastic case from the keyboard at the seam using a plastic opening tool.

  3. 4xCoOokFlCLGjJUW
    4xCoOokFlCLGjJUW
    ZVAkItQOymVuhRFo

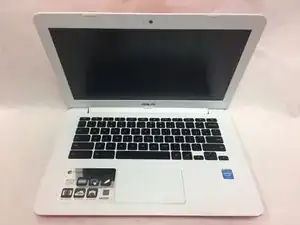

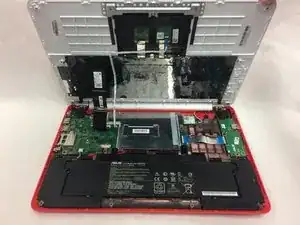

    • Fully separate the plastic case from the keyboard by lifting it upward.

  4. RdcWhyl5ZCRq4b61
    RdcWhyl5ZCRq4b61
    dRZaEhY3QZ3YnOrh

    • The small and wide ribbon cables connect the keyboard to the motherboard.

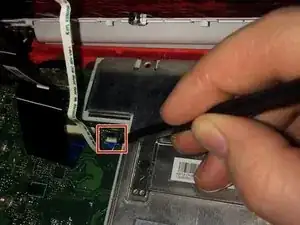

    • Disconnect the small ribbon cable by lifting the flap and sliding it out of the motherboard input toward the battery using a spudger.

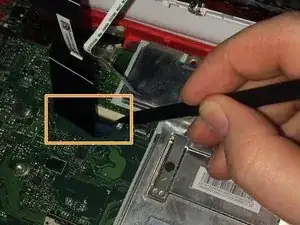

    • Disconnect the wide ribbon cable by lifting the flap and sliding it out of the motherboard input toward the battery using a spudger.

  5. FWCK4ictSshvamBi
    FWCK4ictSshvamBi
    dOXGStBWOCUwFZjO

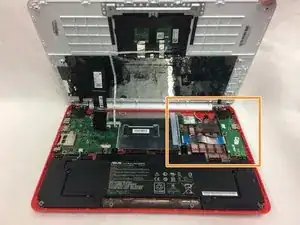

    • Disconnect the USB port in the top right corner from the motherboard.

    • Unplug the the wide ribbon cable using spudger.

  6. dZYjAjTJyVHCbg5W
    dZYjAjTJyVHCbg5W
    CYEurmTB5OGsxXxZ

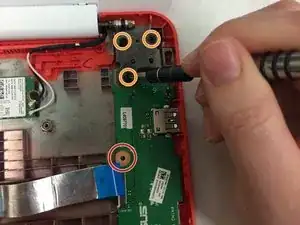

    • Remove the single 3mm screw on the left and bottom side of the USB Port using the Phillips #1 screwdriver.

    • Remove the three 5mm screws on the upper part of the USB port with the same screwdriver.

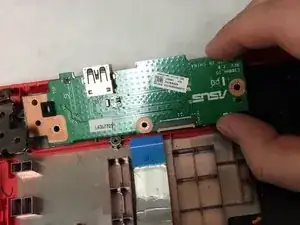

    • Lift the edge of the white casing. Remove the USB Port by pulling it toward the bottom of the laptop.

Abschluss

To reassemble your device, follow these instructions in reverse order.
