Asus Chromebook C300MA-BBCLN12 Battery Replacement

Geschrieben von: Brooke Austin
  • Kommentare: 0
Asus Chromebook C300MA-BBCLN12 Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

10 Minuten

Einleitung

This guide will show you how to open the casing on your Chromebook and remove your battery to replace it.

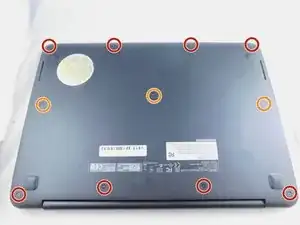

  1. bNKDFWoAUgyhUBx3
    bNKDFWoAUgyhUBx3

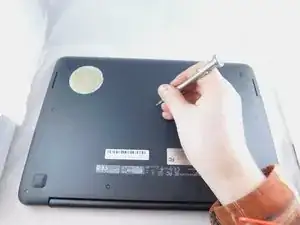

    YBnqrfcNJVFcOMCc

    • Remove the eight 9.0mm Phillips #00 screws.

    • Remove the three 6.0mm Phillips #00 screws.

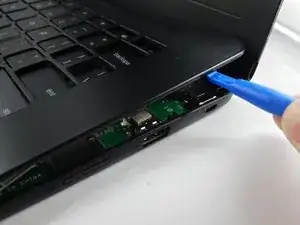

  2. 1Sn5FvFDQpNqmmK6
    1Sn5FvFDQpNqmmK6
    y2OyLGRwVflhsCxd

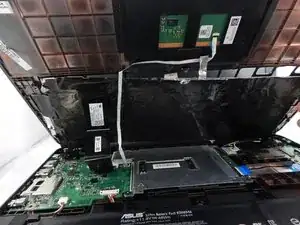

    a5AR1dQGbQd3I2fB

    • Separate the palm rest assembly from the bottom housing using the plastic opening tool.

    • It is recommended that you start from a corner and run the plastic opening tool along the edge of the housing.

    • Lift the palm rest assembly slowly to prevent damaging the two cables that connect it to the motherboard.

  3. d6nRSK3qQb5SraBc
    d6nRSK3qQb5SraBc

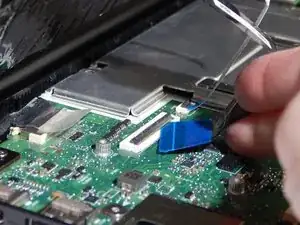

    WqASYIbeHEQ2StMQ

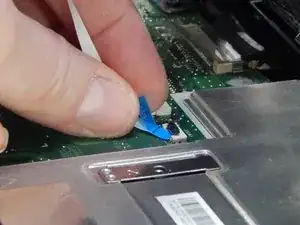

    nWVjpjDJSQH3thdo

    • Flip back the hinges on the connectors that secure the wide black cable and the narrow white cable using the tweezers.

    • Disconnect the wide black cable from the motherboard by pulling the blue cable tab away from the connector.

    • Disconnect the white ribbon cable from the motherboard by pulling the blue cable tab away from the connector.

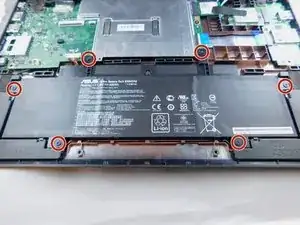

  4. 2DeDdXAfxDp2ykuC

    • Remove the six 6.0mm Phillips #00 screws that secure the battery to the bottom housing.

  5. AZIkGHW3iHHflqct
    AZIkGHW3iHHflqct

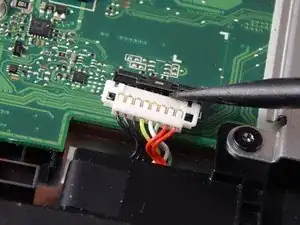

    1ywlLRDGJHtfJLVD

    • Disconnect the bundled cable connector that attaches the battery to the motherboard using the small plastic spudger.

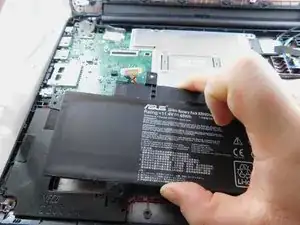

  6. nKfDXV5w4T3J5edf

    • Remove the battery from the bottom housing.

Abschluss

To reassemble your device, follow these instructions in reverse order.
