Einleitung
If your keyboard is not working this guide will be very useful. There is not much that can go wrong with this but as always be wary when unplugging wires as to avoid tearing.
Werkzeuge
Ersatzteile
-
-
Remove the three 6.0 mm Philips screws from the center of the case with the #2 screwdriver bit.
-
Remove the eight 9.0 mm Philips screws along the perimeter of the case with the #2 screwdriver bit.
-
-
-

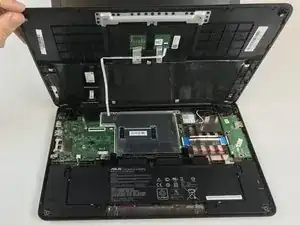

Lift the keyboard panel away from the components at its hinges, which are located at the back of the laptop.
-
-
-

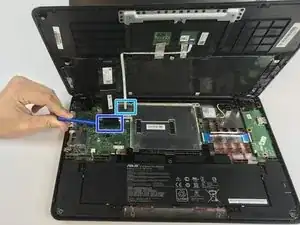

Use plastic opening tool to pry open clip holding mouse pad wires to the circuit board.
-

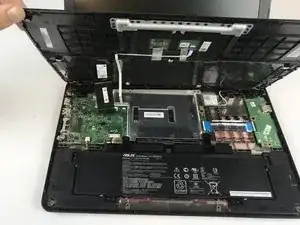

Use plastic opening tool to pry open clip holding keyboard flat black wire
-
Use plastic opening tool to pry open clip holding keyboard thiner white wire
-
To reassemble your device, follow these instructions in reverse order.
