Einleitung
This guide will show the procedure to replace a faulty daughterboard in an Asus Chromebook C300SA-DS02. This should solve problems with the right side USB port. Due to design choices, the display hinges sit atop the motherboard and daughterboards. So while it is not necessary to disconnect the cable connections to the display, you should exercise
Werkzeuge
-
-
Remove the eight 8.0mm Phillips #0 screws on the bottom of the laptop.
-
Remove the three 6.0mm Phillips #0 screws.
-
-
-
Open the laptop.
-
Using an iFixit opening tool, pry along the edges of the keyboard.
-
Lift the keyboard and slide it gently towards you.
-
-
-
Disconnect the two ZIF connectors by prying up the locking bar with a spudger and removing the ribbon cable.
-
-
-
Using your thumb and index finger, pinch the multi-color cable and disconnect it from the motherboard.
-
-
-
Peel back the tape covering the display cable.
-
Ease the cable towards the screen and out from the connector.
-
-
-
Use a Phillips #0 driver to remove the six 5mm screws on the top right and left display hinges.
-
-
-
Using your Phillips #0 screwdriver, unscrew three, 3.6mm screws from the silver heat sink.
-

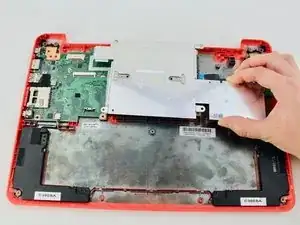

Remove the heat sink from the motherboard.
-
-
-

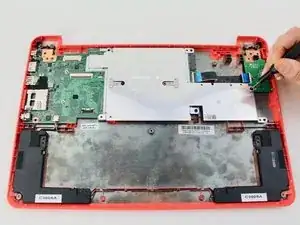

Use a spudger to flip up the locking tab on the ZIF connector of the daughterboard.
-

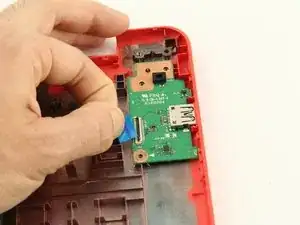

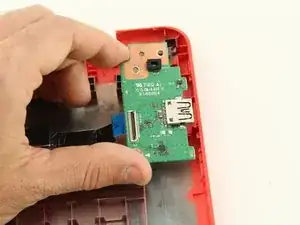

Slide the ribbon cable from the connector.
-
To reassemble your device, follow these instructions in reverse order.
