Asus Chromebook C300SA-DS02 VECO Speakers Replacement

Geschrieben von: Sam LaBelle
  • Kommentare: 4
Asus Chromebook C300SA-DS02 VECO Speakers Replacement

Schwierigkeitsgrad

Easy

Schritte

12

Zeitaufwand

5 Minuten

Einleitung

This repair guide demonstrates the step by step process of removing the VECO speakers from the laptop. They are located inside the laptop and under the battery which will require the removal of both the keyboard and the battery before gaining access.

  1. BgtMRkAL4PFdmvVU
    BgtMRkAL4PFdmvVU
    WHoPBbP2VjbJPqdQ

    • Power the laptop off and make sure the charger is unplugged before starting.

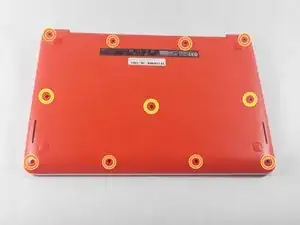

    • Remove the eight 8.0mm Phillips #0 screws on the bottom of the laptop.

    • Remove the three 6.0mm Phillips #0 screws.

    I appear to have FIVE of the smaller screws. The four securing the near edge and the one in the center are smaller than the four securing the far edge and the left and right sides. Either your diagram is wrong, or someone screwed mine together incorrectly.

    brucegreer -

    Mine is the same way — six long screws, five short ones. The screw paths seem to correspond accordingly.

    Paul Wagenseil -

  2. CYIkLNwVP5DNIFcl
    CYIkLNwVP5DNIFcl
    VpQZtDe13hyoHDUe
    YWrtIxSkdBuvXUWO

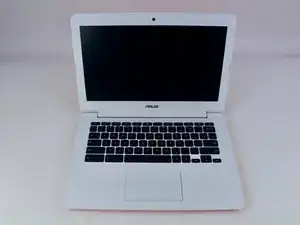

    • Open the laptop.

    • Using an iFixit opening tool, pry along the edges of the keyboard.

    • Lift the keyboard and slide it gently towards you.

    • Do not completely remove the keyboard. It is still connected to the back panel by a pair of ribbon cables.

  3. yNbTIYYWEh3rRHtT
    yNbTIYYWEh3rRHtT
    xYcpBWpcKx3HK3yN
    NHPVgBFCNdXUDMYw

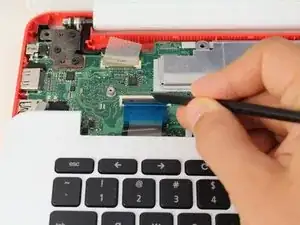

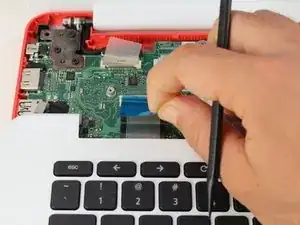

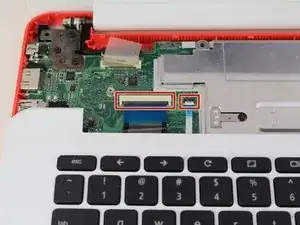

    • Disconnect the two ZIF connectors by prying up the locking bar with a spudger and removing the ribbon cable.

    Peut-on trouver le verrouillage zif en détail sur internet ou autres ?

    Jeremy Audy -

  4. 3PsJhHGwBIyGKVNV

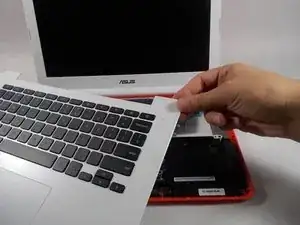

    • Remove the keyboard from the laptop.

  5. T6lPsJcmiYIHFNRv
    T6lPsJcmiYIHFNRv
    vJCeGdREB6qA5qCj

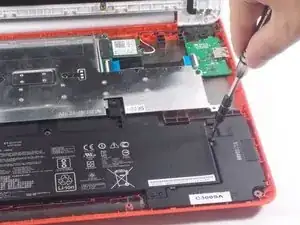

    • Remove the six 5.6mm Phillips #0 screws around the battery.

  6. FoOIQpGTNrZouAQJ
    FoOIQpGTNrZouAQJ
    rCQkAjxuOMK11L25

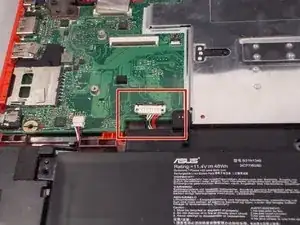

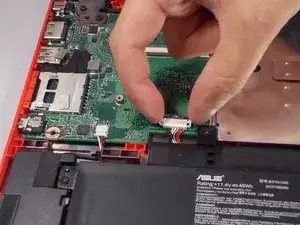

    • Using your thumb and index finger, pinch the multi-color cable and disconnect it from the motherboard.

    A serious omission is that there is a metal clamp holding the battery connector in place that MUST be slid back in order for the connector to be lifted up and off.

    Rob -

  7. hYitUhqPXixSaHla

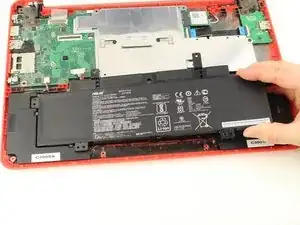

    • Lift the battery out of the laptop.

  8. KrS5CgrnrIvuEJcr

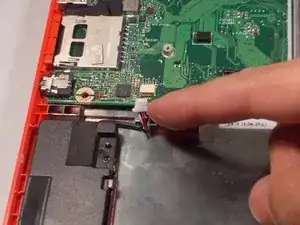

    • Unplug the speaker cable from the motherboard.

  9. UuJ3XNOVkfMbetyM
    UuJ3XNOVkfMbetyM
    YUR3w3NgdHaVKsJu

    • Start by removing the right speaker first.

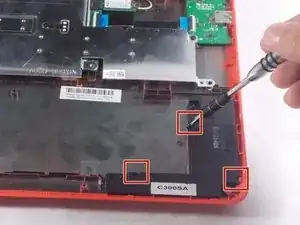

    • There are two metal clips and one plastic clip holding the right speaker in place. Push them back and lift speaker out of the laptop.

    • Use a screwdriver to gently push back the metal clips.

  10. lVcmF31rPt33Y6fq
    lVcmF31rPt33Y6fq
    otW3AxSacKHFVmca

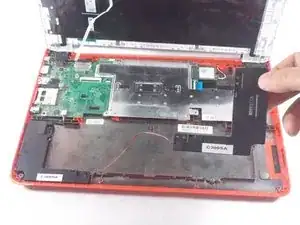

    • Untangle the wire connecting the right speaker to the left speaker.

    • Move right speaker and wires away from your working space.

    • Do not lift wire straight up, there are five interlocking ribs holding this wire in place.

  11. nh4d1NA5bCJHlIPv

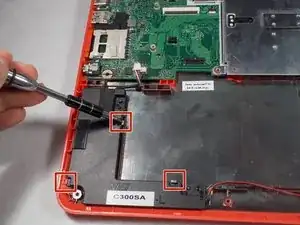

    • There are two metal clips and one plastic clip holding the right speaker in place. Push them back and lift speaker out of the laptop.

    • You can use a screwdriver to push back the clips if needed.

  12. ViBvUHrgqeWTANht

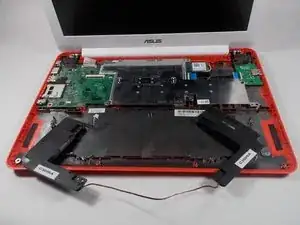

    • Lift speakers and cable away from the laptop.

Abschluss

To reassemble your device, follow these instructions in reverse order.
