If you have an Asus Chromebook Flip laptop (model C302CA) and are experiencing problems such as a popup menu appearing at startup, a Windows Stop Error, or malfunctioning applications; it is possible that your laptop motherboard has failed and needs to be replaced. If this is the issue, this guide will walk you through the steps of removing and replacing your motherboard.
The motherboard is the main component in a computer/laptop system that connects all of the computer system's features so that it can perform various tasks and functions in the system. Remember that failure to address motherboard issues may necessitate a complete software reinstallation or the purchase of a new computer.
Despite that, make sure your laptop is turned off and unplugged from any outlets before you begin removing the components. It is best if you gather all of your tools in one place before starting to replace this component. We recommend you use the iFixit Magnetic Project Mat to keep your screws organized. Choose a location where no children will interrupt you to prevent them from using tools that could harm them.
-
-
Remove two rubber caps on the top.
-
Remove the two 1 mm screws using the Phillips #00 screwdriver.
-
-
-
Remove the ten 2 mm screws from the back panel using a T5 Torx screwdriver.
-
Carefully remove the back panel using an opening pick.
-
-
-

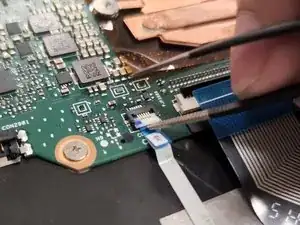

Remove the sticker holding the cable using a pair of tweezers.
-

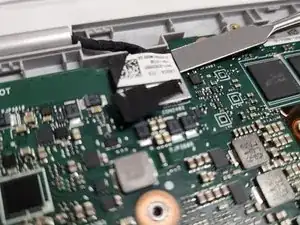

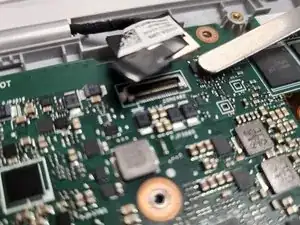

Detach the cable from the motherboard by lifting it up with a spudger.
-
-
-

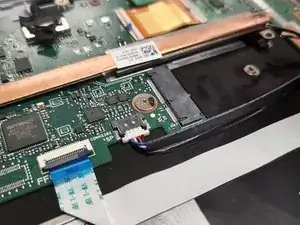

Carefully remove the black and white cables connected to the Wi-Fi card.
-

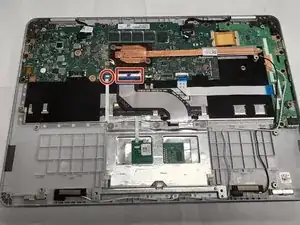

Remove the single 2 mm screw while holding the Wi-Fi card using the Phillips #00 screwdriver.
-

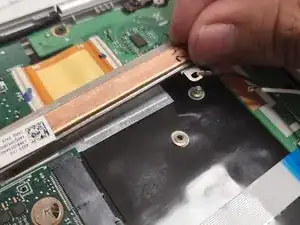

Remove the Wi-Fi card from the laptop.
-
-
-

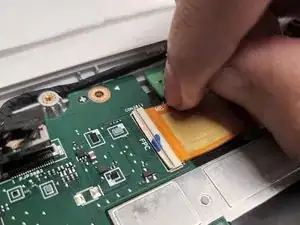

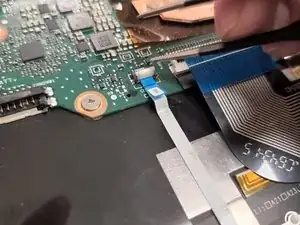

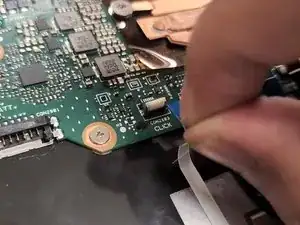

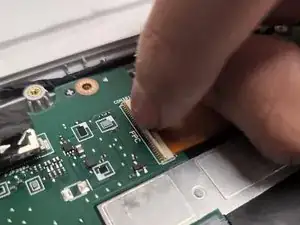

Remove the ribbon cable from the motherboard.
-

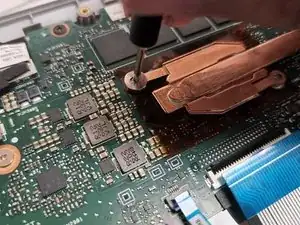

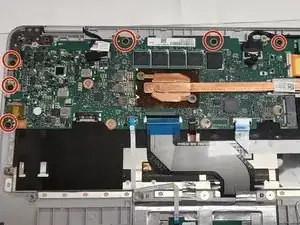

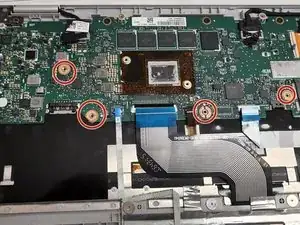

Then, remove the two 1mm screws with a PH00 screwdriver.
-
To reassemble your device, follow these instructions in reverse order.
