Asus Eee PC 1000HA Hard Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

10 Minuten

Einleitung

This guide will show you how to replace the hard drive. Please see the proper list of tools so you are prepared.

  1. 2fErmCWINZRqpVbW

    • Remove the battery before working on your device. See this LINK for a step-by-step guide.

    • Gently turn the laptop up side down so that the battery is facing away from you. The battery is outlined by the red rectangle in the picture to the left.

  2. hS6Xtwodia2xQsnD
    hS6Xtwodia2xQsnD
    dP5Y1pKlYVXJgKrV

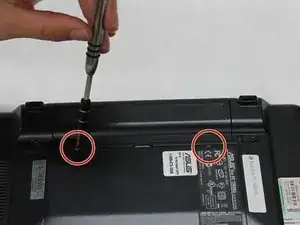

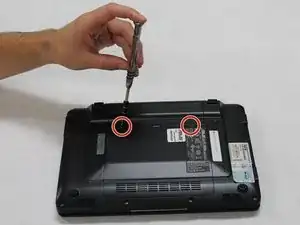

    • Use a #00 Phillips Head screw driver to remove the two 1/4" screws that hold the back panel in place.

  3. mOWkkRbJTPTajYiq

    • Place the blue plastic 1/4" opening tool into the small indention and gently pry the back panel off.

  4. PagPQpZfvDygS4YR

    • Remove the back panel.

    • The hard drive is shown by the orange marker.

  5. TVsqBjaCkhPniKhH
    TVsqBjaCkhPniKhH
    YTPVj2fompqYVSSd

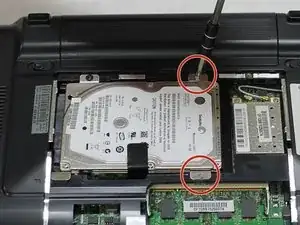

    • Use the same, #00 Phillips Head screw driver to remove two 1/8" screws.

  6. XnuIcGBh5aHYyiSM
    XnuIcGBh5aHYyiSM
    K1yDXjgDpodXLRtM

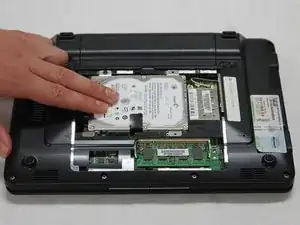

    • To remove the hard drive, slide it to the right.

  7. 12evmsBkwC6akGNA

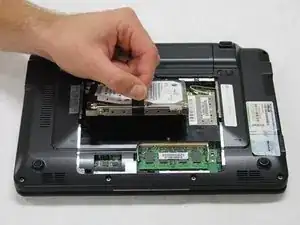

    • Grab the black tab and lift up to remove the hard drive from the computer.

Abschluss

To reassemble your device, follow these instructions in reverse order.
