Asus Eee PC 1000HA Keyboard Replacement

Geschrieben von: Ashlee Stickle
  • Kommentare: 0
Asus Eee PC 1000HA Keyboard Replacement

Schwierigkeitsgrad

Easy

Schritte

2

Zeitaufwand

5 Minuten

Einleitung

This guide will show you how to replace or remove the keyboard on the Asus Eee PC 1000HA.

  1. LSXVTCDfKKS1bdU2
    LSXVTCDfKKS1bdU2
    4CcvNftlvZF3p5Ee

    • Remove the battery before working on your device. See this LINK for a step-by-step guide.

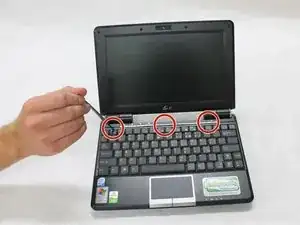

    • Insert the metal spudger under the keyboard.

    • There are 3 clips located under the keyboard that hold the keyboard in place.

  2. xiIXwHn4AKrORYAX
    xiIXwHn4AKrORYAX
    uYuseAUkrHw4nHfM
    T1TV2IZjCwfxnKcQ

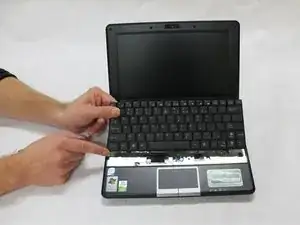

    • Once all 3 of the clips are unclipped the keyboard will pop out.

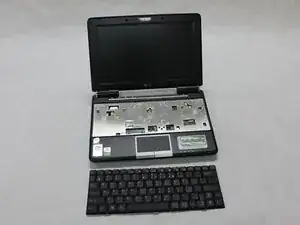

    • Pull the black tab out to fully remove the keyboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
