Asus Eee PC 1000HA Screen Replacement

Geschrieben von: Ashlee Stickle
  • Kommentare: 2
Asus Eee PC 1000HA Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

10 Minuten

Einleitung

In this guide we will provide you with the necessary information to replace the screen on an Asus Eee PC 1000HA.

  1. mXCcFR2jcUJAEiuM
    mXCcFR2jcUJAEiuM
    O4gZEnOlnRhxumRJ

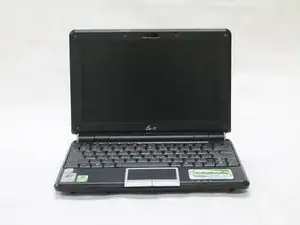

    • Remove the battery before working on your device. See this LINK for a step-by-step guide.

    • Use the metal tweezers to remove all of the rubber pads from the face of the lap top.

    • Removing the rubber pads will reveal 6 screws.

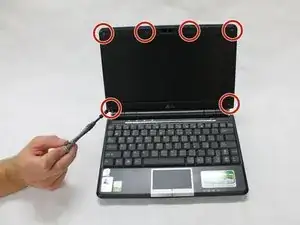

  2. XTOpdwsiQWLUStDl

    • Use a #00 Phillips Head screw driver to remove the 4.8mm screws.

    • There will be 6 screws total.

  3. DJfnTOWrVVsdZNpc
    DJfnTOWrVVsdZNpc
    ewAaQjBMNjFWtrBI

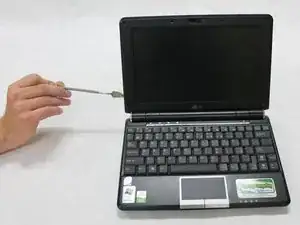

    • Use the metal spudger to pry off the outside frame of the screen.

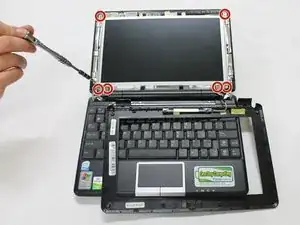

  4. DNQJZjCQZmYx6EtG

    • Use the #00 Phillips Head screw driver to remove the 5.44mm screws.

    • There are 6 screws total.

    Petite erreur : Les 2 vis entourées en haut à gauche et en haut à droite sont déjà retirées à l’étape 2.

    L’ensemble des 6 vis à retirer se trouvent en bas à gauche et en bas à droite de 'l’écran.

    Joffrey Abeilard -

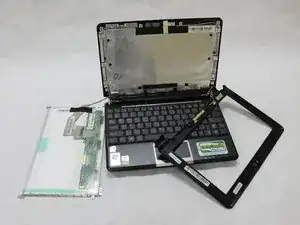

  5. R4errkccd1SjTVwy
    R4errkccd1SjTVwy
    V2Z3KgnFTS32cxxg
    13YaCDGqQV2SLQLU

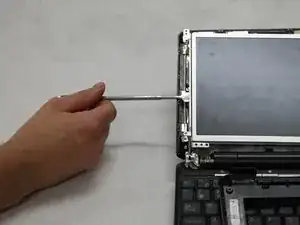

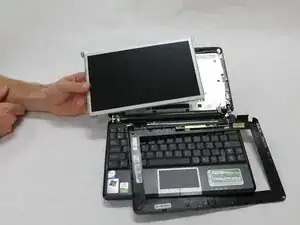

    • Use the metal spudger to gently remove the screen from the laptop.

  6. ExFtuXytYOimCfXp
    ExFtuXytYOimCfXp
    myBLLTZOOtTtotaJ
    1dLu6shNd4nIppUA

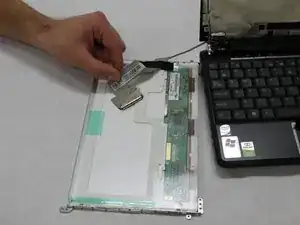

    • Gently pull the tab that is connecting the laptop to the screen, to fully disconnect the screen from the laptop.

Abschluss

To reassemble your device, follow these instructions in reverse order.
