Asus Eee PC 1005HA RAM Replacement

Geschrieben von: Mitchell Cesare
  • Kommentare: 1
Asus Eee PC 1005HA RAM Replacement

Schwierigkeitsgrad

Moderate

Schritte

2

Zeitaufwand

10 - 15 Minuten

Einleitung

Use this guide to replace or upgrade RAM in the Asus Eee PC 1005HA.

  1. mDAGaagEHPlRZxXn
    mDAGaagEHPlRZxXn
    d2AGLtF1vjOZWX5h
    X1cJ4fkIvi1g1kpX

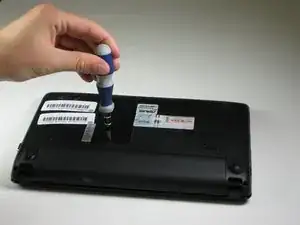

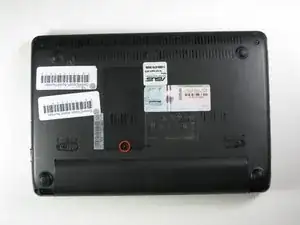

    • Loosen the captive screw in the RAM compartment cover.

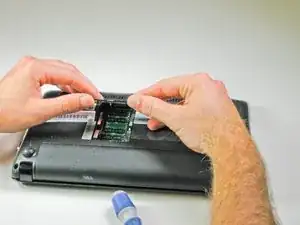

    • Remove the RAM compartment cover.

    • This photo shows the battery still attached, but it should be removed prior to removing or replacing the RAM.

  2. qqbQjmnPGaektiOG
    qqbQjmnPGaektiOG
    UTRLVvAsj4l26FfB
    nrI1CAdScrjYGAJW

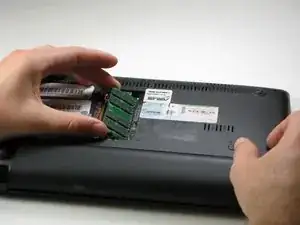

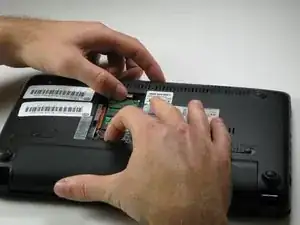

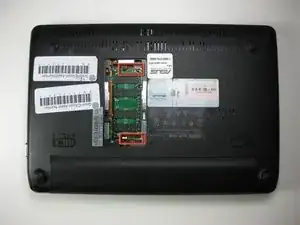

    • Pull the two RAM retaining arms away from the center of the RAM chip.

    • Gently pull the RAM chip out of its socket.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Mitchell Cesare

Mitglied seit: 31/01/12

784 Reputation

Ein Kommentar

Great guides. What is the maximum amount of RAM that this unit can accept?

MalikDon777 -
