Asus Eee PC 1005HA Wifi Card Replacement

Geschrieben von: Maged Hanna
  • Kommentare: 2
Asus Eee PC 1005HA Wifi Card Replacement

Schwierigkeitsgrad

Moderate

Schritte

14

Zeitaufwand

20 - 30 Minuten

Einleitung

Although there are several ways this task could be accomplished, this guide walks through the most appropriate steps to complete the task without damaging the fragile components. Read instructions carefully to reach success.

  1. kTCYldyvpDOYK15M
    kTCYldyvpDOYK15M
    eIXO1lhSHbOSAmtN

    • Use a plastic opening tool to pull up the four metal latches in the battery cavity that is located on the bottom of the laptop.

    • Do not apply too much pressure. The latches can not be removed and will bend if forced.

  2. vth1xHClrRt4La2d
    vth1xHClrRt4La2d
    wF4sHgYXJrYGIWNj
    e2KAJhdBWTXuUJiR

    • Flip the laptop over, and open the display.

    • Use a plastic opening tool to lift the edge of the keyboard that is nearest to the screen.

    • Gently lift the keyboard and slide it toward the screen.

    • Do not remove the keyboard completely. This can damage the ribbon cable connecting the underside of the keyboard to the laptop.

    It must be mentioned that you need to put the plastic opening tool above the F1, F6, between F10 and F11 and the Insert (Num Lock) Keys . It has 4 clips in total.

    Jakab Szilárd -

  3. pIJOdNQRPYUUJ2D1

    • Use a spudger tool to release the tabs on the ribbon cable ZIF connector that is attached to the underside of the keyboard.

    • Depending on the model, the tabs on this ZIF connector will either flip up toward the display or push out toward the display.

    • Once the ZIF connector tabs have been released, remove the keyboard.

  4. vkJWIwC4YtgkX13t
    vkJWIwC4YtgkX13t
    XQsNxDsxAKKARRJu

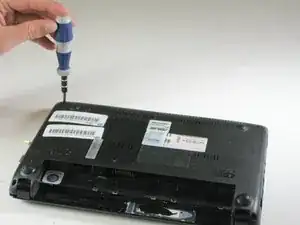

    • Remove the (6.65 mm) screw next to the RAM.

    • Remove the RAM door cover.

  5. sH5OLSEsLTD4iUlk

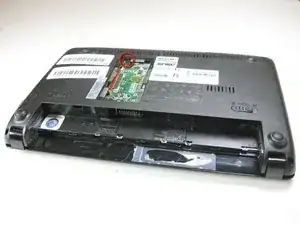

    • Remove (6.65 mm) screw next to RAM.

    • Identify and disconnect touch pad ribbon cable which can be seen through a window at the bottom edge of the metal part of the top casing (in these photos the connector shows blue).

  6. Cgeaxh2WUSJQR3Mg
    Cgeaxh2WUSJQR3Mg
    EWHkdeguykX3o3ei

    • Turn computer right side up, and open it.

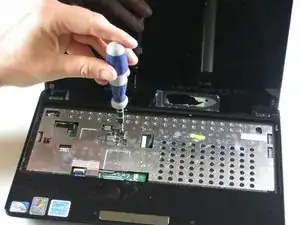

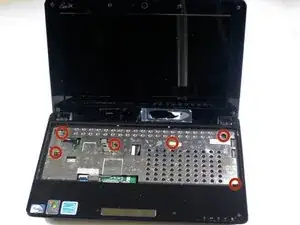

    • Remove 6 (5.5 mm) screws from inside covering.

    • Disconnect the touch pad ribbon cable.

  7. FDGH5Q1kvG1wiVJs
    FDGH5Q1kvG1wiVJs
    ODp3wE4tuDIO56L3

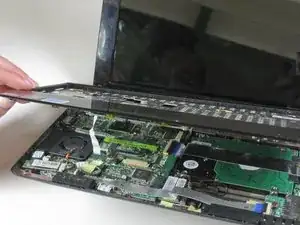

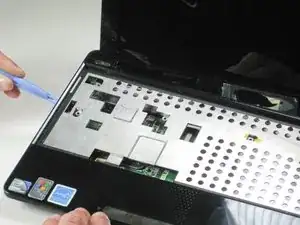

    • The palmrest plastic is fragile. Handle it carefully.

    • Two miniature LEDs will be exposed in the top edge of the bottom casing. Handle with caution to avoid damage.

    • Detach each of the 5 plastic clips. Run a plastic opening tool along the underside of the top half. You will hear the 'clicks' of the clips coming undone.

    • After the clips are loose, disconnect the palmrest flatflex and remove it.

  8. 3mSonRJC24gYxM2i

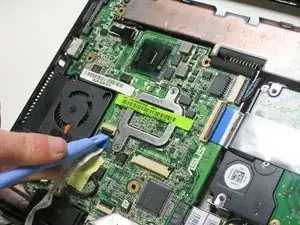

    • Raise black pad to detach trackpad ribbon if not done in step 4.

    • (Completing this step according to the directions in step 4 reduces the potential for damage.)

  9. 6k2TdQWdqSrvuGDr
    6k2TdQWdqSrvuGDr
    HcjGZNq5XHLegw1g
    aQhQMfMb3oF6p6Dx

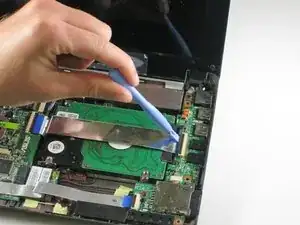

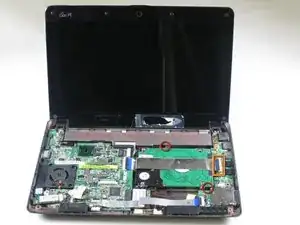

    • Remove the hard drive ribbon by lifting the black clips upward.

    • Remove (4.6 mm) screws that hold the hard drive in place.

    • There may be only one of these screws, the one at bottom right. The upper position screw may already have been removed (The 4th red circle from the left in step 4).

  10. S1a4b2Lqi1TNTK64
    S1a4b2Lqi1TNTK64
    Gtd6iBBkXgOi3pNv

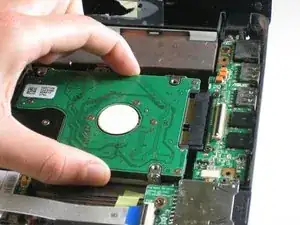

    • Gently pull the hard drive to the left by the black plastic ribbon. Slowly lift the hard drive up on the left and then out.

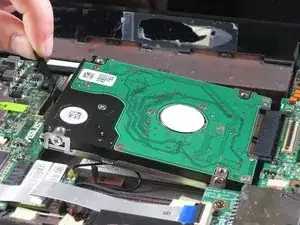

    • When re-inserting, use caution to ensure that the WiFi antenna cable (visible as a black loop below the disk in the 2nd photo) is not trapped under the leg of the drive encasing.

  11. wJvRdrKeRGgRKUqW
    wJvRdrKeRGgRKUqW
    4kIG4qbEAMmJqGaR

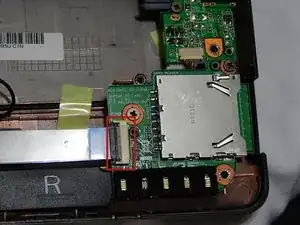

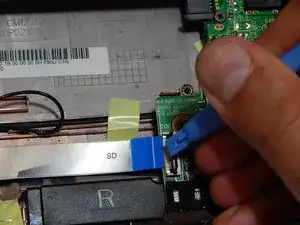

    • Lift the black clips using the plastic opening tool to detach the ribbon that connects the SD card module.

  12. IP2BYIv5ooTZ5KgW

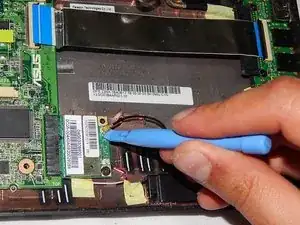

    • Remove the wifi antenna connection using the plastic opening tool.

  13. U1vZyLIN3MLrXSRm
    U1vZyLIN3MLrXSRm
    XK5ugnAY3xonXfhK

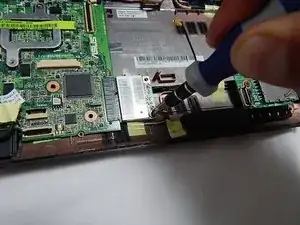

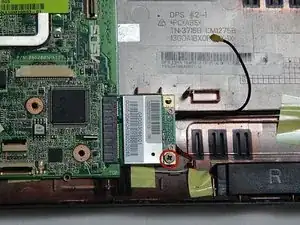

    • Remove this screw, which holds the wifi component in place, using the Phillips head screwdriver.

  14. ksAOUZv2eA6dHSMT

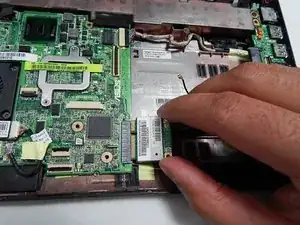

    • Pull the Wi-Fi component to the right, and then slightly upward and finally out to remove the Wi-Fi antenna.

    • Move antenna cautiously to avoid damage.

Abschluss

To reassemble your device, follow these instructions in reverse order.
