Asus Eee PC 1201N RAM Replacement

Geschrieben von: Trae Mikesell
  • Kommentare: 0
Asus Eee PC 1201N RAM Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

5 Minuten

Einleitung

This guide will walk through the steps to replace the RAM in your device. It does not involve any major disassembly and only requires a screwdriver and plastic opening tool.

  1. joVnobRQFHoem1a3

    • Flip the netbook over.

    • Be sure to unplug the netbook and power off the device while working.

  2. bLqOEyRLjVUxew6O

    • Push open both tabs on either side of the battery.

    • The tab on the left will click open and stay in place until you close it.

  3. l3xdVUKCEWTVWO2R

    • Pull the tab on the right open, while you remove battery with your other hand.

    • Pull the battery straight out ensuring that you don't damage any connectors.

  4. LG23RnZqKqLJ5SNS
    LG23RnZqKqLJ5SNS
    ybIEhSP2cVFmpFa6

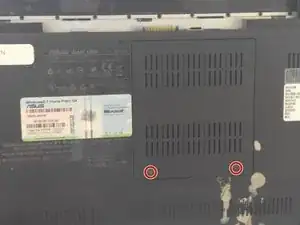

    • Remove the two 4.6mm screws using the J0 Phillips head screwdriver.

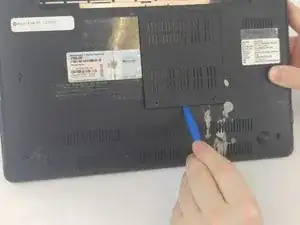

    • Then use the plastic opening tool to open the RAM door.

  5. t5hOhEAQ1BHsatdi

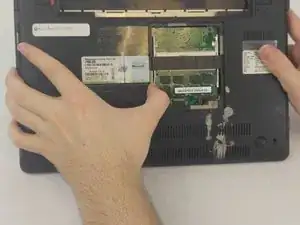

    • Push the tabs on the side of the RAM to release.

    • Only push the tabs over slightly to ensure you do not break them.

  6. QoRSVUbbmPFUBW3g

    • Remove the RAM by pulling it towards you.

Abschluss

To reassemble your device, follow these instructions in reverse order.
