Asus Eee PC 1215N RAM Replacement

Geschrieben von: Gaetan
  • Kommentare: 2
Asus Eee PC 1215N RAM Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

3 Minuten

Einleitung

  1. e3V1DikTaIVxVhRD
    e3V1DikTaIVxVhRD
    V2gmNHbdhyNlBclF

    • Turn the power off and turn the netbook upside down.

    • Slide both battery catches together to release the battery.

    • Slide the battery out.

    While there is a fairly long list of tools listed here, I was able to complete the entire guide using only a 3/64" flathead mini screwdriver (the kind you get for $0.99). I replaced the stock 500GB 5400RPM drive with the updated 7200RPM slim drive of the same line with no issues. The BIOS picked it up immediately, and I need only reinstall an OS.

    Tolidano -

    Missing step: remove the two screws under the battery, otherwise the keyboard won’t come off

    Andrea Borgia -

  2. dUvygJIQ1NqOnoXK
    dUvygJIQ1NqOnoXK
    ObTYwMccZIfHKClS
    GGEDflKLrHfKfJZO

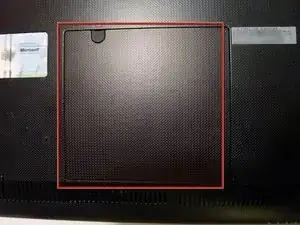

    • Locate the memory compartment.

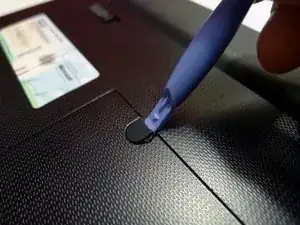

    • Using a Plastic Opening Tools, remove the screw rubber cover.

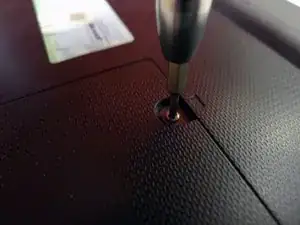

    • Remove the screw.

  3. cxcLdTcpDmIEmYqA

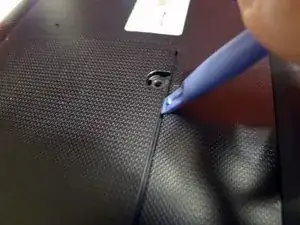

    • Use a Plastic Opening Tools near the screw hole to release the cover.

    • Remove the cover

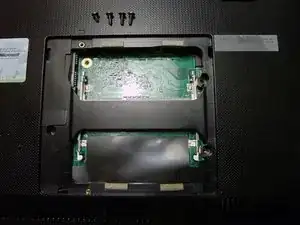

  4. WcNPnwDgK1AkNBpA
    WcNPnwDgK1AkNBpA
    OPqCf3JKbFjSKKmb

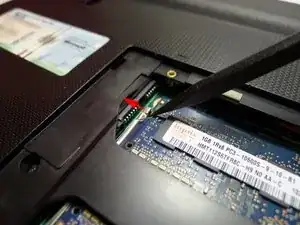

    • Using a Spudger, push both right and left metal clip to release one of the RAM module.

    • Slide out the RAM module.

    • Do the same with the second RAM module if necessary.

Abschluss

To reassemble your device, follow these instructions in reverse order.
