Asus F554LA-WS52 Screen Replacement

Geschrieben von: Aaron Ratliff
  • Kommentare: 0
Asus F554LA-WS52 Screen Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

20 Minuten

Einleitung

You may need to replace your notebook's screen if it is scratched or cracked, but have an otherwise intact notebook. A simple fix, you will need a plastic opening tool and Phillips #0 screwdriver.

  1. uc2eDw3jMUAS3ZHE
    uc2eDw3jMUAS3ZHE
    XYOJh4TBbwu3DN6N

    • Remove the two plastic screw coverings from the bottom of the screen panel.

  2. SxObsiUGewqjJ6ON
    SxObsiUGewqjJ6ON
    tieDxuul4Bv3WPMs

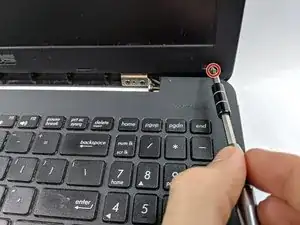

    • Remove the two 4.6mm screws using the Phillips #0 screwdriver.

  3. YcwTUTiQHg5HXcwt
    YcwTUTiQHg5HXcwt
    EAT2K6Ztx4CujwJJ

    • Using the plastic opening tool, gently pry the notebook's plastic screen covering away from the screen.

  4. VtydGyTcOTqYcYYv
    VtydGyTcOTqYcYYv
    NtYOWpgSwg6bWCoq

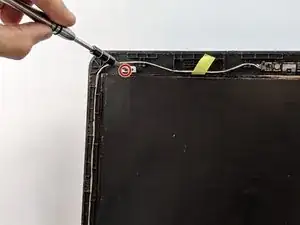

    • Remove the two 4.6mm screws holding screen in place.

  5. MoKsSkCsJijRvkr6
    MoKsSkCsJijRvkr6
    m5b1DYnjSOYyJ3dW
    OXjVNNlJ64wIWXoF

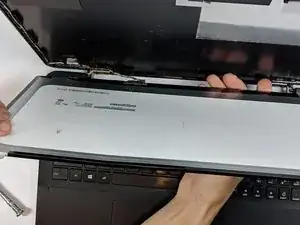

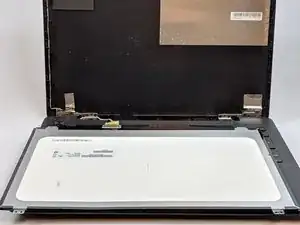

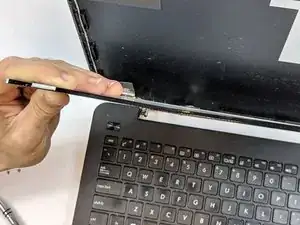

    • Carefully, lay screen down on the keyboard.

    • Be cautious as the screen will still be attached.

  6. kejRnQZwCRpjQGOi
    kejRnQZwCRpjQGOi
    3Ku2evgvpMRyLTly
    oiJ3hJALBns2NRAJ

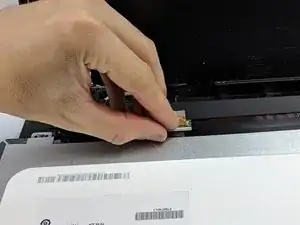

    • Remove tape that covers the visual pin connectors.

    • Gently disconnect the screen from the pin connectors and replace.

Abschluss

To reassemble your device, follow these instructions in reverse order.
