This guide will show you how to remove and replace the CPU fan on your ASUS F555-AB31 laptop. The fan is located behind the Motherboard so nearly full disassembly of the device is required to access it.
Werkzeuge
-
-

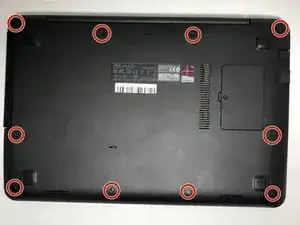

Open the laptop.
-
Begin to pry upward on the edges of the faceplate in order to separate the keyboard and trackpad from the rest of the device.
-

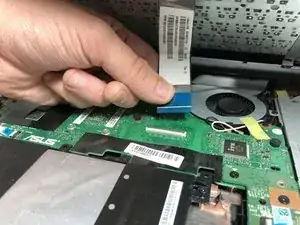

To remove the ZIF connector, gently lift upward on the blue tab to disconnect it from the motherboard.
-
-
-

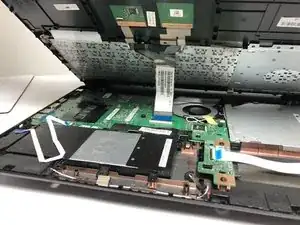

Fold the faceplate upwards towards the screen to fully expose the inside of the laptop.
-
Both the battery and the hard drive adapter PCB will need to be moved in order to lift and access the backside of the motherboard.
-

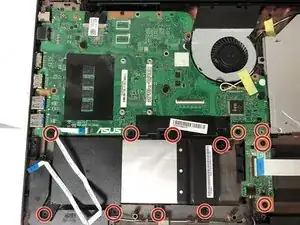

Unscrew the eight Phillips #0 screws on from the battery, and four Phillips #0 screws from the hard drive adapter PCB.
-
-
-

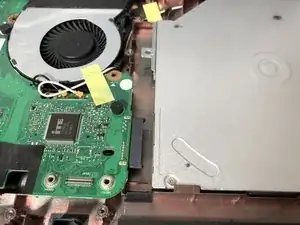

Remove the CD drive by unscrewing the single 4mm Phillips #0 screw and sliding the drive away from the motherboard.
-

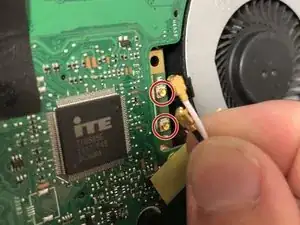

Disconnect the two antennas that are attached to the network card.
-
-
-

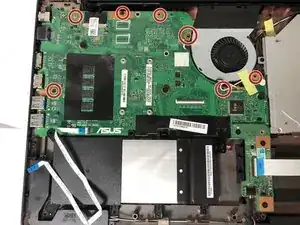

Remove the seven 4mm Phillips #0 screws holding the motherboard down to the laptop chassis.
-
Lift the motherboard upwards, folding it towards the laptop screen.
-
Disconnect the 4-pin PWM cable attaching the fan to the back of the motherboard. The fan can now be removed by simply sliding the fan off the copper heat pipe.
-
To reassemble your device, follow these instructions in reverse order.
