Asus F555LA-AB31 Network Card Replacement

Geschrieben von: David Burns
  • Kommentare: 0
Asus F555LA-AB31 Network Card Replacement

Schwierigkeitsgrad

Moderate

Schritte

12

Zeitaufwand

25 - 30 Minuten

Einleitung

If your Asus F555LA-AB31 will not connect to the network or if you experience intermittent connections, it may be time to replace your network card. Your network card connects your computer to a local area network (LAN) or the internet. If the network card has a faulty hardware component, the operating system might not show it as a connected device. It may also not reliably connect to networks or recognize networks in specific situations; such as when the laptop is hot or during extended use.

Before using this guide, verify the issue is not software related before replacing the network card. Asus provides a support guide to troubleshooting wireless issues in this link.

Electronics are sensitive to ESD. Here is a link for using an anti-static mat and wristband. The laptop must be unplugged before servicing to prevent electrical shock and hardware damage.

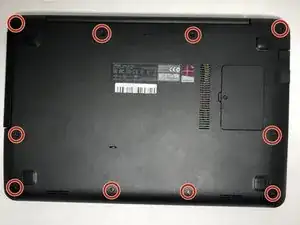

  1. M1JpYetf1pZIBeEM

    • Turn off and unplug the device before starting repairing.

    • Use the Phillips #0 screwdriver head to remove the ten 18mm Phillips #0 screws on the laptop's bottom.

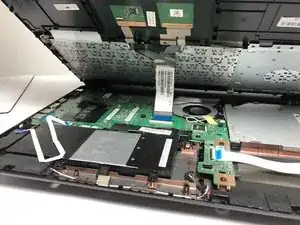

  2. tgkDKU34mUmVweGw
    tgkDKU34mUmVweGw
    3i36hOrnLqJrRINV

    • Flip the laptop over and flip the screen up.

    • Pry upward on the edges of the faceplate in order to separate the keyboard and trackpad from the rest of the device.

    • Be cautious of the cables connecting the keyboard and trackpad to the motherboard.

  3. jAuEVLRWRZFBBUkp

    • Disconnect the keyboard flex cable from its motherboard ZIF socket.

    • To unlock a ZIF connector, use the tip of a spudger or your fingernail to flip up the small, hinged locking flap. Carefully slide the unlocked cable out of the socket.

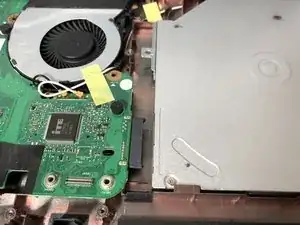

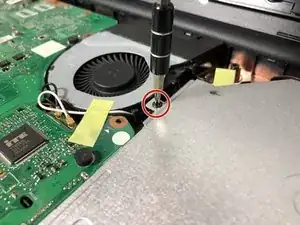

  4. hbIgpy3MpMG3cWbi
    hbIgpy3MpMG3cWbi
    5PHIlKEY15X1GTqJ

    • Use the Phillips #0 screwdriver to unscrew the one Phillips #0 screw that connects the CD drive to the motherboard.

    • Slowly slide out the CD drive, keeping it level, to remove it.

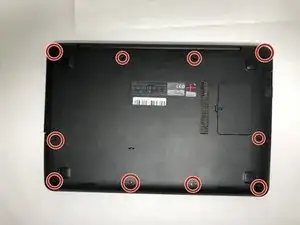

  5. gxNtBPQHZEOPjlBA

    • Remove ten 18mm Phillips #0 screws from the backside of the device.

    • Removal of the RAM access panel is not necessary.

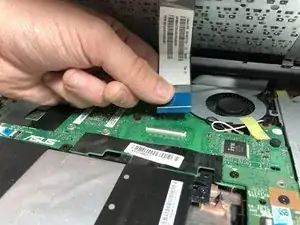

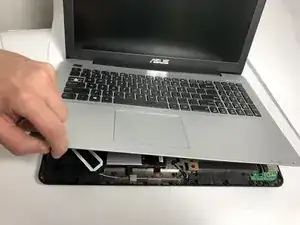

  6. NfHOEQZ4tYeGT1yZ
    NfHOEQZ4tYeGT1yZ
    11k2Q5x2yJspAlBo
    1uCEsODJkieuSgOG

    • Carefully fold the device open.

    • Begin to pry upward on the edges of the faceplate in order to separate the keyboard and trackpad from the rest of the device.

    • Be cautious of the cables connecting the keyboard and trackpad to the motherboard.

    • To remove the ZIF connector, gently lift upward on the blue tab to disconnect it from the motherboard.

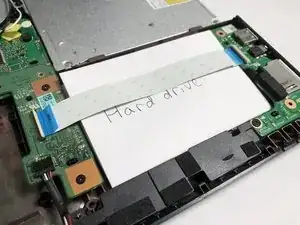

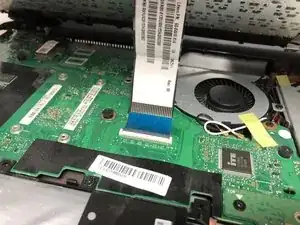

  7. tN1OA2DiLcSOlmhZ
    tN1OA2DiLcSOlmhZ
    EcDkJup2LIdZpcV6
    sQCQfIPjLlgMHcPO

    • Fold the keyboard section of the laptop up towards the screen to fully expose the inside of the device.

    • Unscrew the four 4mm Phillips #0 screws holding down the hard drive.

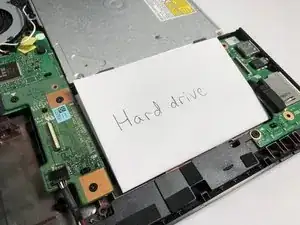

  8. LjFwh2m6FlRXud6S

    • Disconnect the ZIF connector and lift the hard drive out of the space.

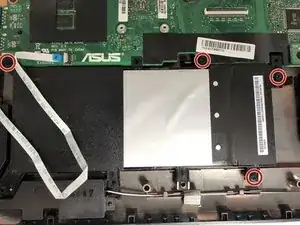

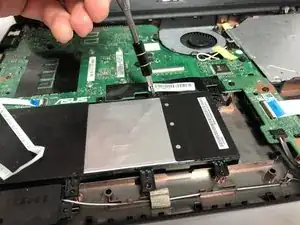

  9. 4ig1S6HZWLURv6oH
    4ig1S6HZWLURv6oH
    THLCN1pjCTdVM3fO

    • Remove the four 4 mm Phillips #0 screws securing the battery.

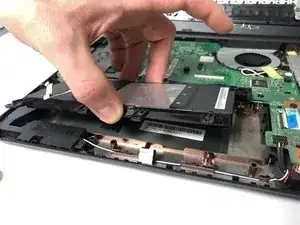

  10. NarRJaSTgpeQJDqU
    NarRJaSTgpeQJDqU
    3AVokccubUPLtgo2

    • Lift up battery and remove it from the device.

  11. xwvLspyMO3OhPbIA

    • Disconnect the two wires connected to the network card.

  12. rE3QkVFQnYUZyykl
    rE3QkVFQnYUZyykl
    oDoMHQQxKMvHgXXM
    oVsAbcxI5FPJCJ1X

    • Remove the seven Phillips #0 screws holding the motherboard down.

    • Lift the motherboard upwards, folding it towards the laptop chassis.

    • Unscrew the Phillips #0 screw holding down the network card, and slide it out.

Abschluss

To reassemble your device, follow these instructions in reverse order.
