Einleitung
This guide will show you how to remove and replace the Wifi card for the Asus G501JW-BHI7N12. This could improve connections with Wifi networks and could also solve connections issues with other wireless devices.
-
-

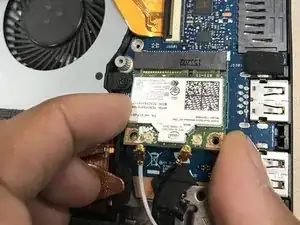

Attach the Anti-Static Wrist Strap to a metal piece of the computer.
-

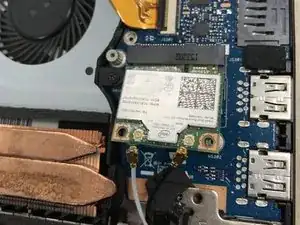

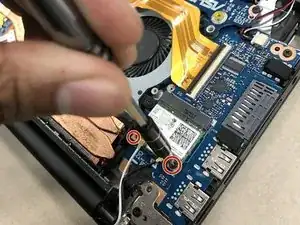

Unscrew the two 4 mm Philips 0 screws from the wifi card.
-
-
-

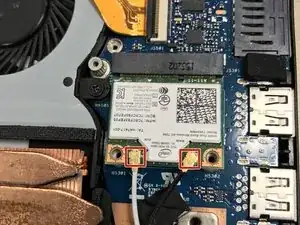

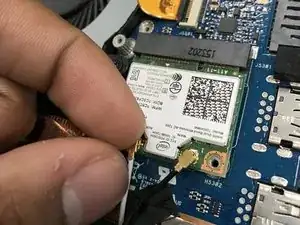

Remove the two black and white connectors from the Wifi card by gently pulling them up and away from the card.
-
Abschluss

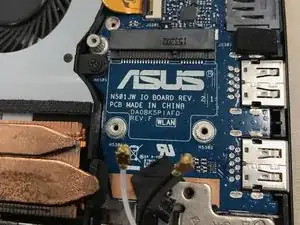

To reassemble your device, follow these instructions in reverse order.
