Asus G501JW-BHI7N12 Speakers Replacement

Geschrieben von: Timothy Goike
  • Kommentare: 0
Asus G501JW-BHI7N12 Speakers Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

20 - 25 Minuten

Einleitung

Although uncommon, having to replace the speakers on the Asus G501JW-BHI7N12 could be useful should you want to upgrade speakers or if they are blown out from playing at too high of a volume. Either way, removing the speakers is one of the easiest repairs that can be done.

  1. 4JXOh1XQBZeJKI2Y
    4JXOh1XQBZeJKI2Y
    4kVrHJboVJ4HjDtB

    • Attach the clip of your anti-static wrist strap to the case of the laptop. This prevents any accidents that could fry the motherboard.

    • Remove the four 7.0mm Philips #0 screws around the battery.

  2. IAXigvrAYVx3U5Dl

    • Unplug the connector highlighted in this picture by pulling it up and out of it's seating, then pull the battery away from the motherboard and remove the battery.

  3. JnpkrdCNePZErsiS

    • Disconnect the white cables.

    • The first white cable is located above the left speaker. The second and the third white cables are located along the left side of the trackpad.

  4. JbrIrps3NhSCSDMS

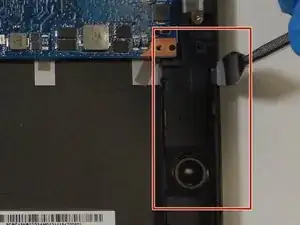

    • Using the metal spudger, insert the metal spudger between the speaker and pry up to remove it.

  5. uBs6aR3jQAWR1hXV

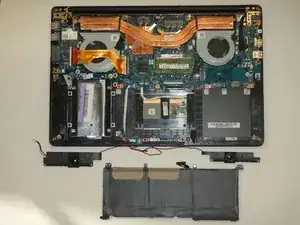

    • Remove the speakers from both sides following the previous step.

Abschluss

To reassemble your device, follow these instructions in reverse order.
