Replacing the trackpad on the Asus G501JW-BHI7N12 is a repair that can be done even by new/ low experienced fixers. Should a trackpad become unable, it can make simple task very difficult. Removing the trackpad for a replacement saves you a lot of time, that is normally lost when you sent the laptop out to a repair shop.
-
-

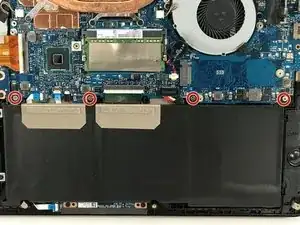

Unplug the connector highlighted in this picture by pulling it up and out of it's seating, then pull the battery away from the motherboard and remove the battery.
-
-
-
Slide cooling fan out from underneath the copper heat sink.
-
The cooling fan will be clipped to the case, we suggest pulling it toward the front of the case. Using the spudger can be helpful to work the fan loose.
-
-
-
One of the fans will have a connector that partially covers it. Pull the connector loose by flipping up the plastic clamps on both ends and follow steps 2-4.
-
-
-
Using the Phillips #0 screwdriver, remove the six 5 mm screws located along the copper heat sink.
-
-
-

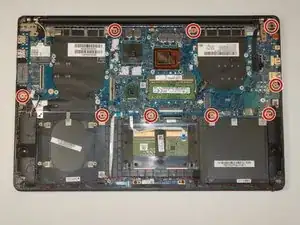

Using the same Phillips #0 screwdriver, remove the nine 4 mm screws located around the motherboard.
-
-
-

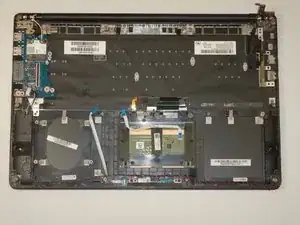

Using the Phillips #0 screwdriver, remove the three 4 mm screws attached to the trackpad.
-

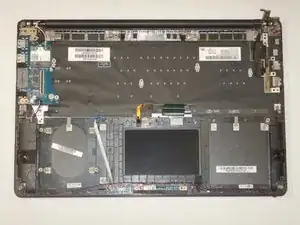

To reassemble your device, follow these instructions in reverse order.
