Einleitung
Replacing a laptop’s motherboard takes time and a lot of effort, especially if you have never done it before. During the motherboard removal and installation process, you run into a variety of minor stumbling blocks . But don’t be concerned! We will assist you in getting the parts you need to replace and completing the process as quickly as painlessly as possible.
Werkzeuge
-
-

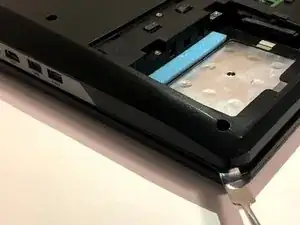

Make sure the computer is off and turn it over on its back. Push the slider all the way back until the compartment for the battery opens. Remove the battery and place it aside.
-
-
-

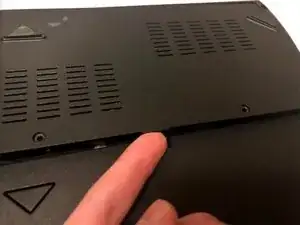

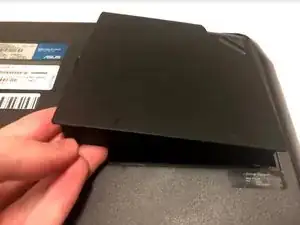

Find the panel on the back of the computer. Use a Phillips #0 screwdriver to unscrew the 2 4.2mm screws on that panel. Next, lift up the panel at the indent and place it aside.
-
-
-

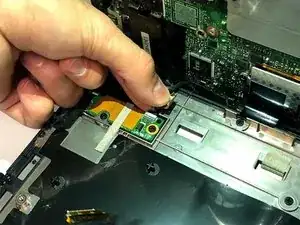

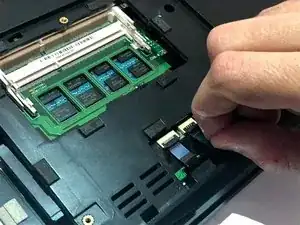

When the back panel is removed, disconnect the blue and black ribbon connectors exposed from the back panel.
-
-
-

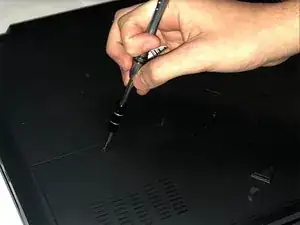

Remove the fifteen 4.2 mm screws on the bottom of the laptop with a Phillips #0 screwdriver, under the battery, and beneath the back panel that secure the keyboard to the laptop.
-
-
-

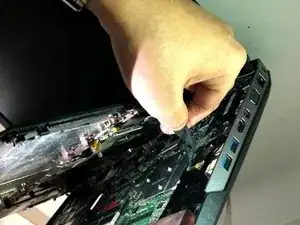

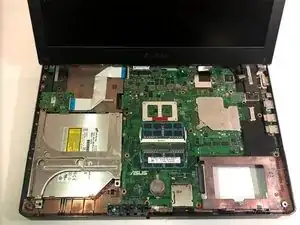

Remove the ribbon connectors that connect the keyboard to the motherboard. The keyboard should now be completely disconnected from the laptop.
-
To reassemble your device, follow these instructions in reverse order.
