Asus G73JH-RBBX05 Hard Drive Replacement

Geschrieben von: Trevor Sprosty
  • Kommentare: 0
Asus G73JH-RBBX05 Hard Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

20 Minuten

Einleitung

Locate and remove your hard drive for replacement or upgrade.

  1. HpSf4Ah3uSDpJpcu

    • Flip the laptop over and remove the two 4mm screws located at the bottom of the laptop with the PH0 screwdriver.

  2. BTGQXBmyMxeCJ1Z3

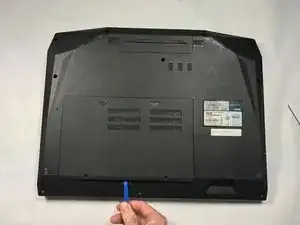

    • Using a plastic opening tool or finger, remove the access panel.

    • Apply constant force until the panel releases from the clips underneath.

  3. 5vp3MuDfOjboxp3V

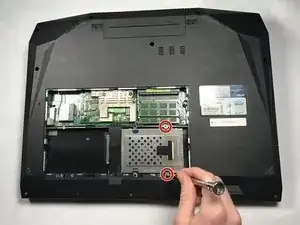

    • Locate the two, 4mm screws on the hard drive. Remove them with the PH0 screwdriver.

  4. 2DNuPpfFgW3WMdXd

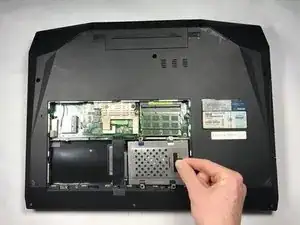

    • Using the black tab located on the hard drive, pull out the hard drive.

Abschluss

To reassemble your device, follow these instructions in reverse order.
